Thank you for choosing ElectricalOM !

Official release version:

ElectricalOM - Download (2026.10.7.3)

Warning

Download the new version only if you have an active support/updates subscription

If you are asked for a password to install the software during the installation, please get in touch with your IT to provide the necessary permission

For any assistance please contact us

Note

Please anticipate several updates soon after a major release as we actively address your feedback and improve overall stability.

Update Troubleshooting

If you experience any problems during or after the update please see the Update Troubleshooting articles

See what's new in ElectricalOM v2026.10

BS 7671:2018+A4:2026 (Amendment 4)

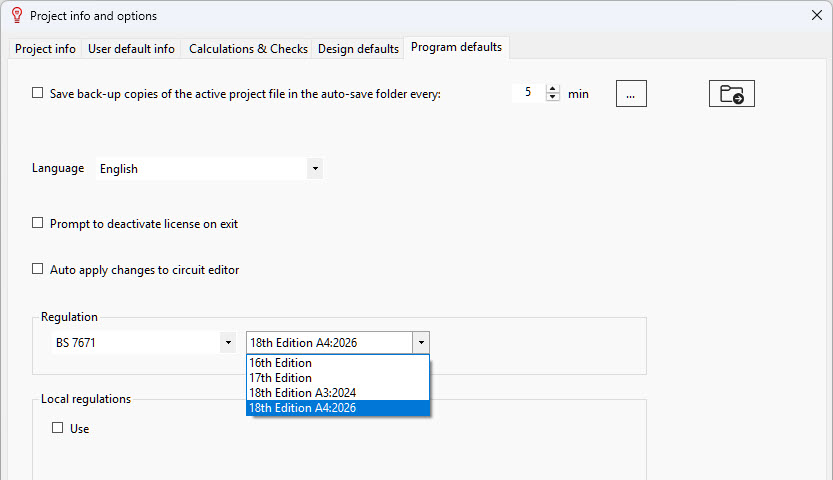

24.07: BS 7671:2018+A4:2026 is available in the regulation selection

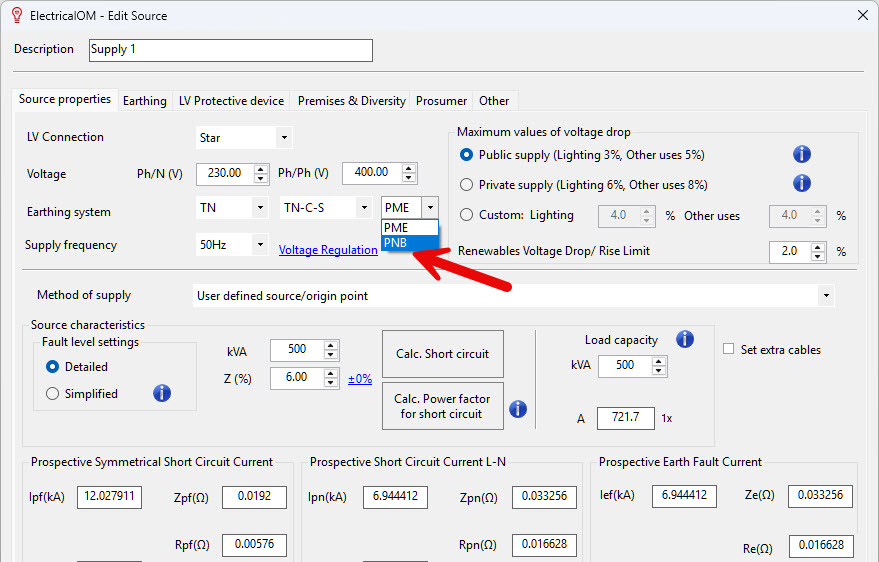

24.07: Earthing arrangement TN-C-S (PNB)

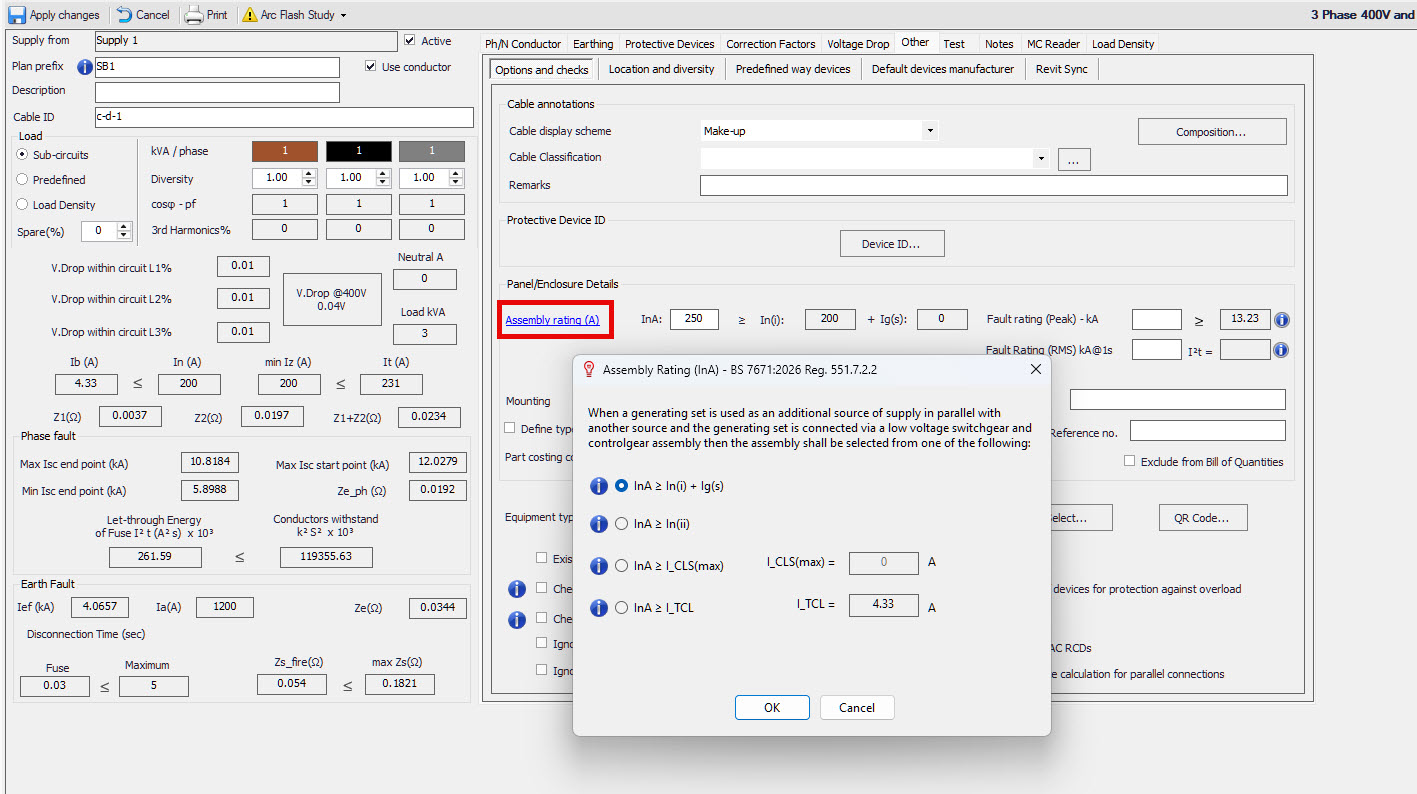

24.07: Reg. 551.7.2.2 - Assembly rating (InA) check with options (a) to (d) and a new assembly rating editor

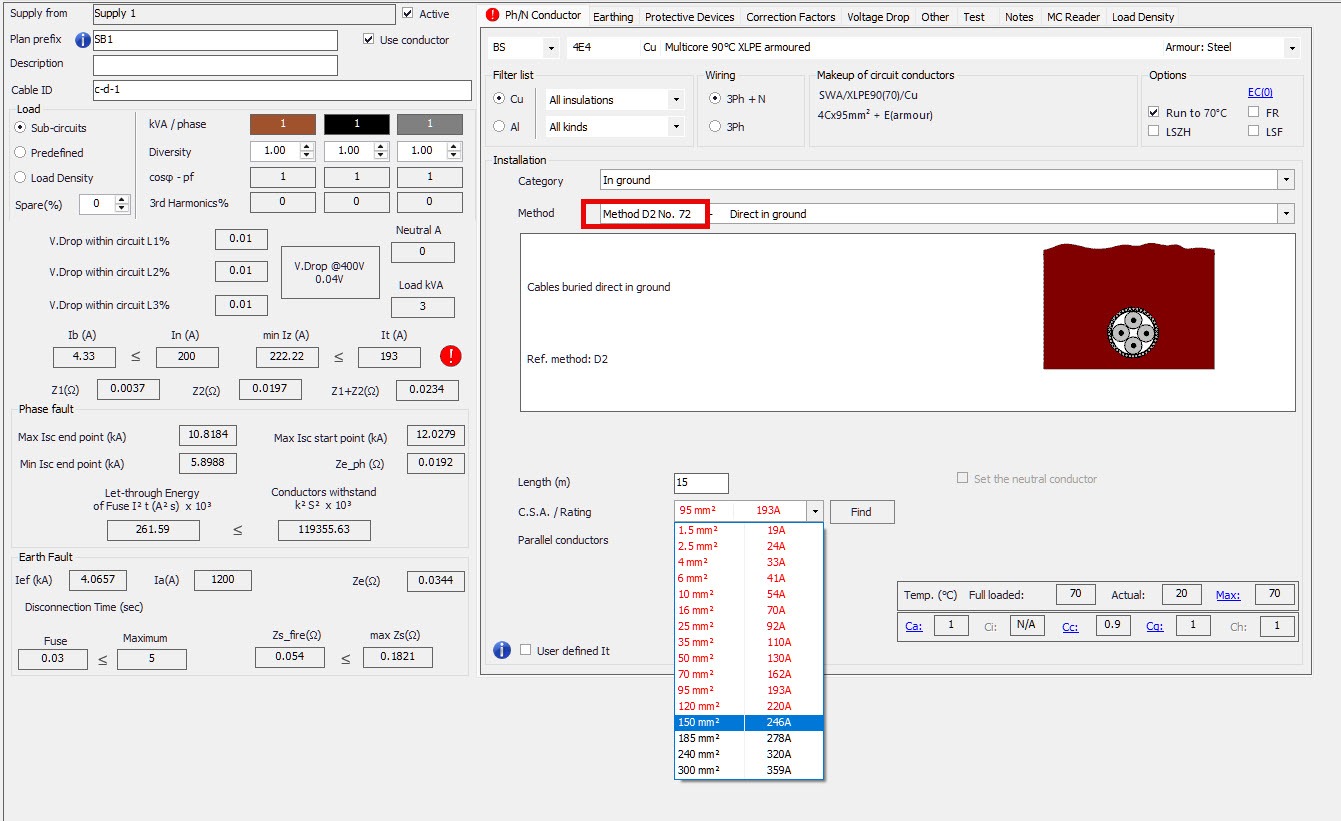

24.07: Installation method D is now D1 / D2 following the BS 7671:2018+A4:2026 changes

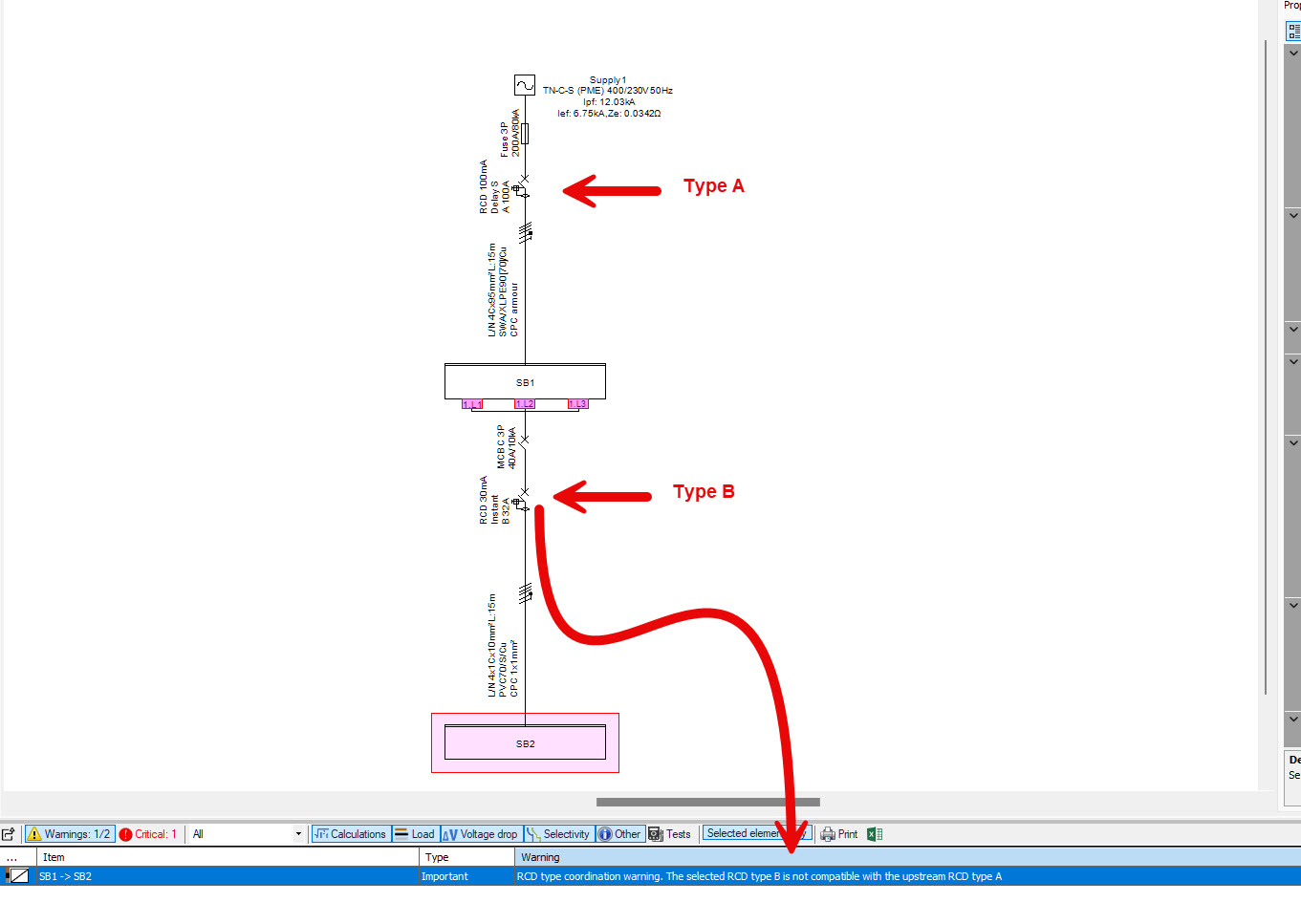

24.07: Coordination of RCD types (AC, A, F, B) with the upstream RCD (531.3.3)

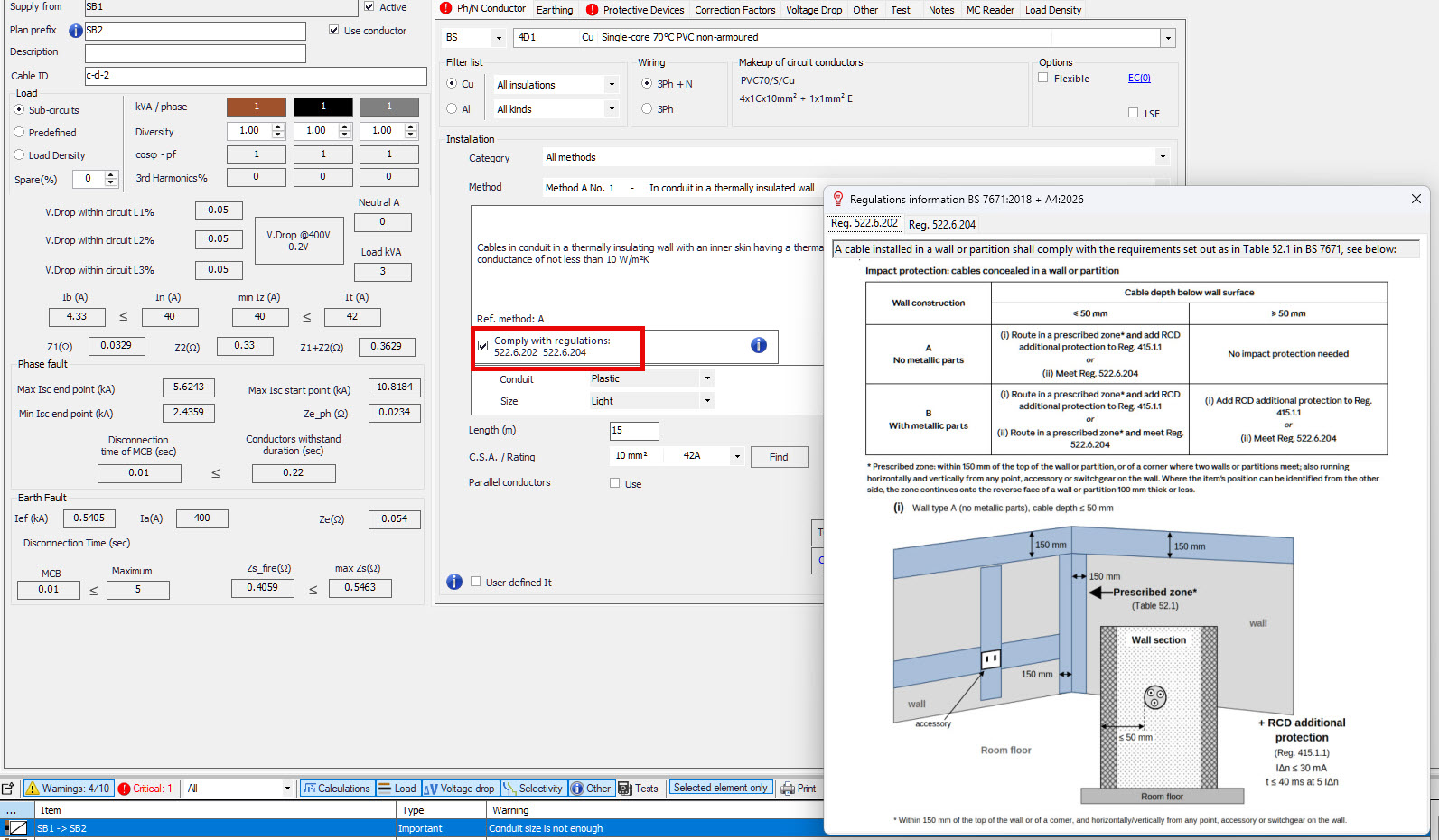

24.07: Installation method considerations (522.6.202, 522.6.204)

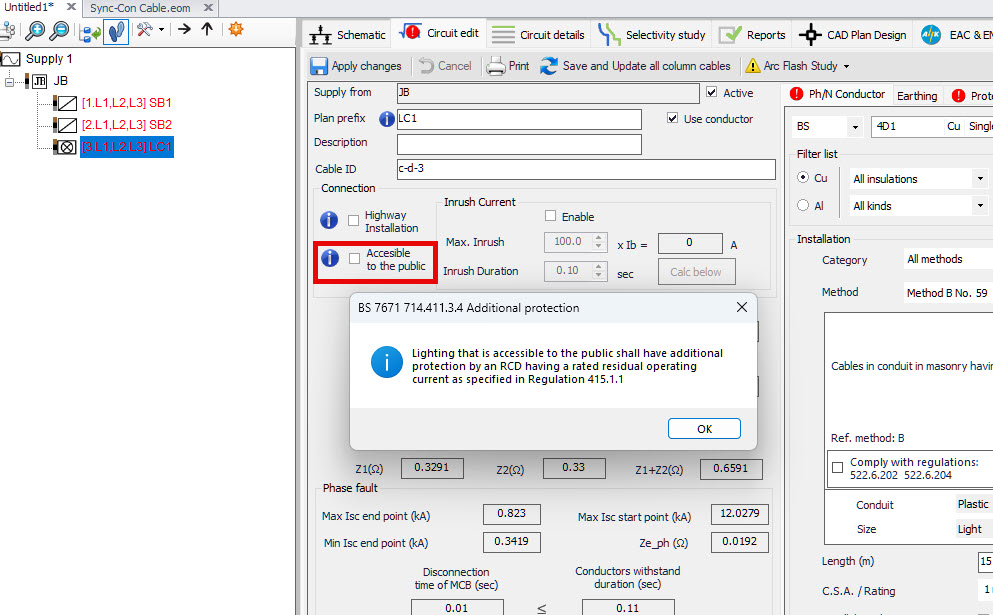

02.10: Lighting column - "Accessible to the public" option for additional RCD protection (Reg. 714.411.3.4)

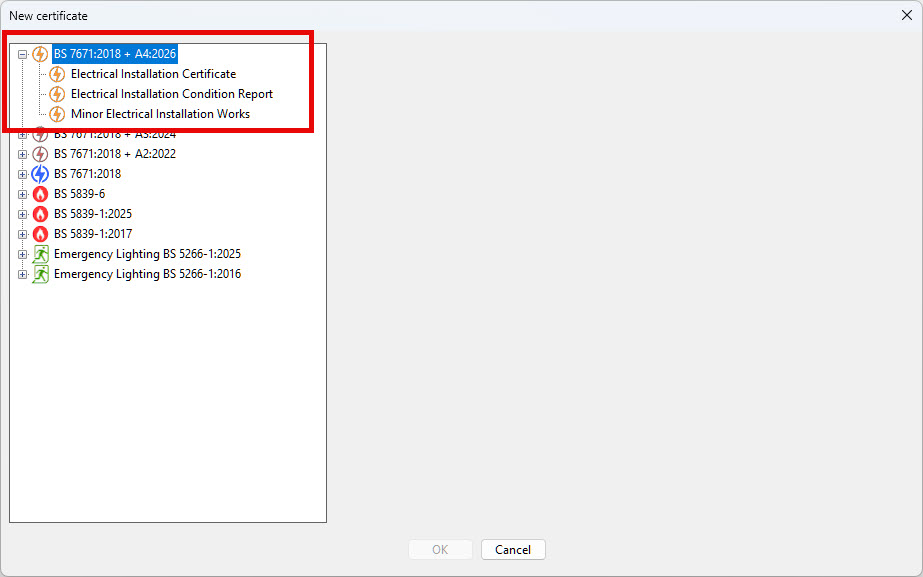

03.10: UK Forms: EIC, Minor Works, EICR to Amendment 4:2026

New functionality

28.09: ElectricalOM now runs on .NET 10, bringing improved performance, reliability, and long-term support. The upgrade provides faster application startup and execution, better resource efficiency, enhanced security, and a more modern technology foundation for future development. With .NET 10, ElectricalOM is better positioned to deliver a smoother, more responsive experience while making future updates and new features easier to develop and maintain.

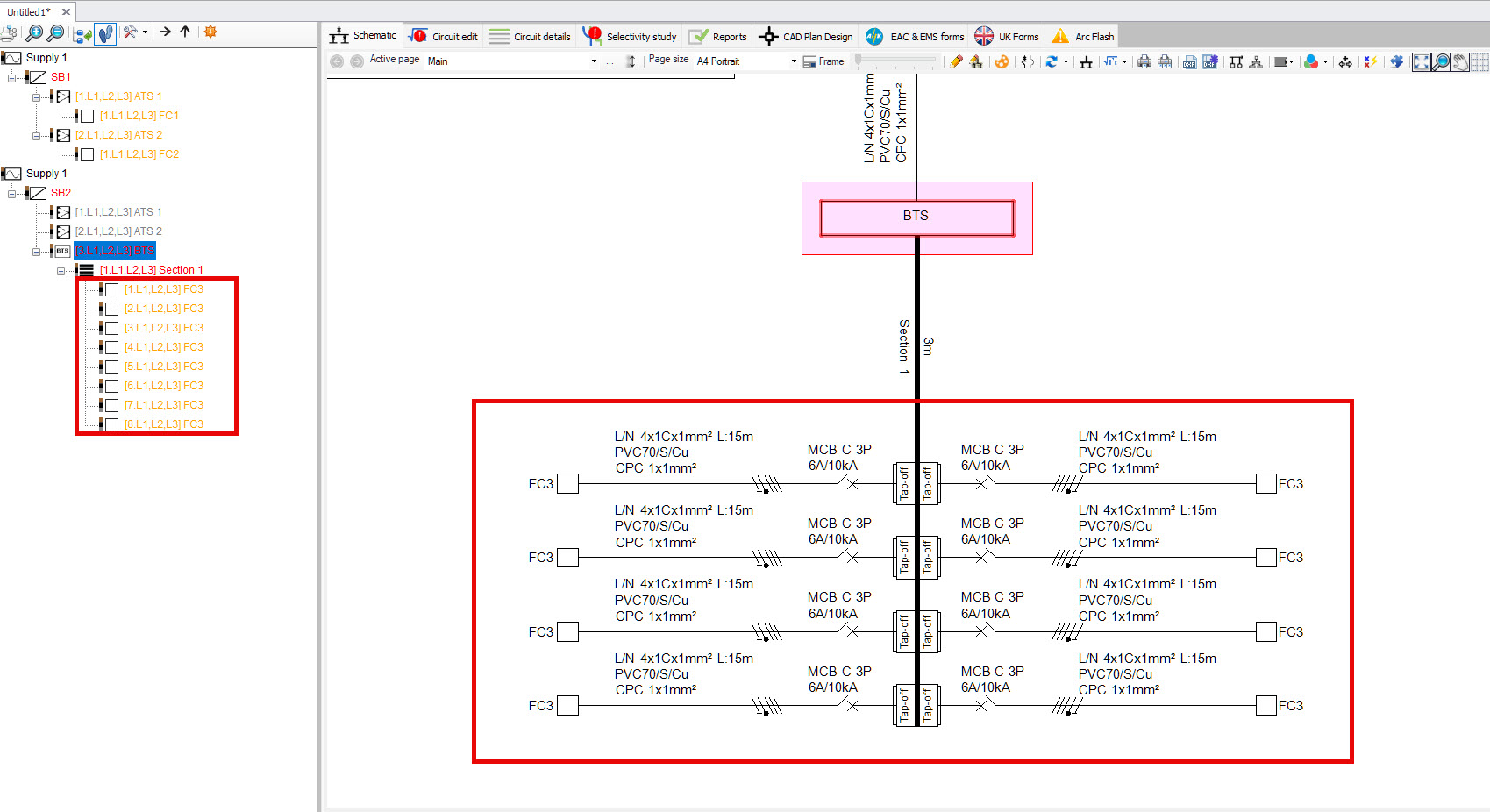

15.09: Busbar sections allow any number of tap-offs

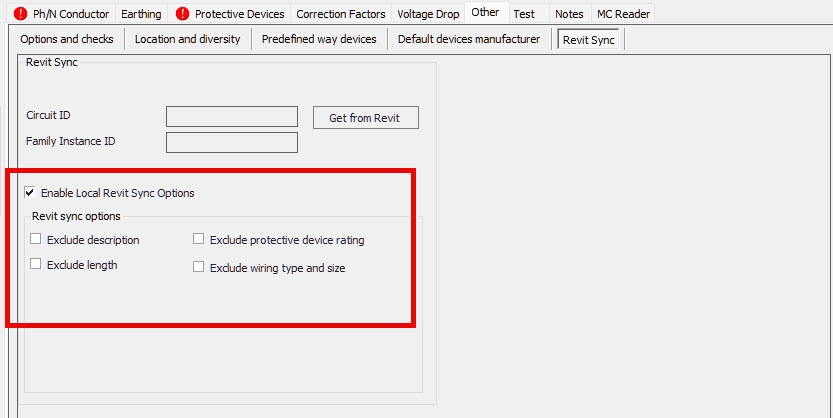

09.09: Local Revit sync options per circuit / board, with a Revit Sync grid in the circuit details

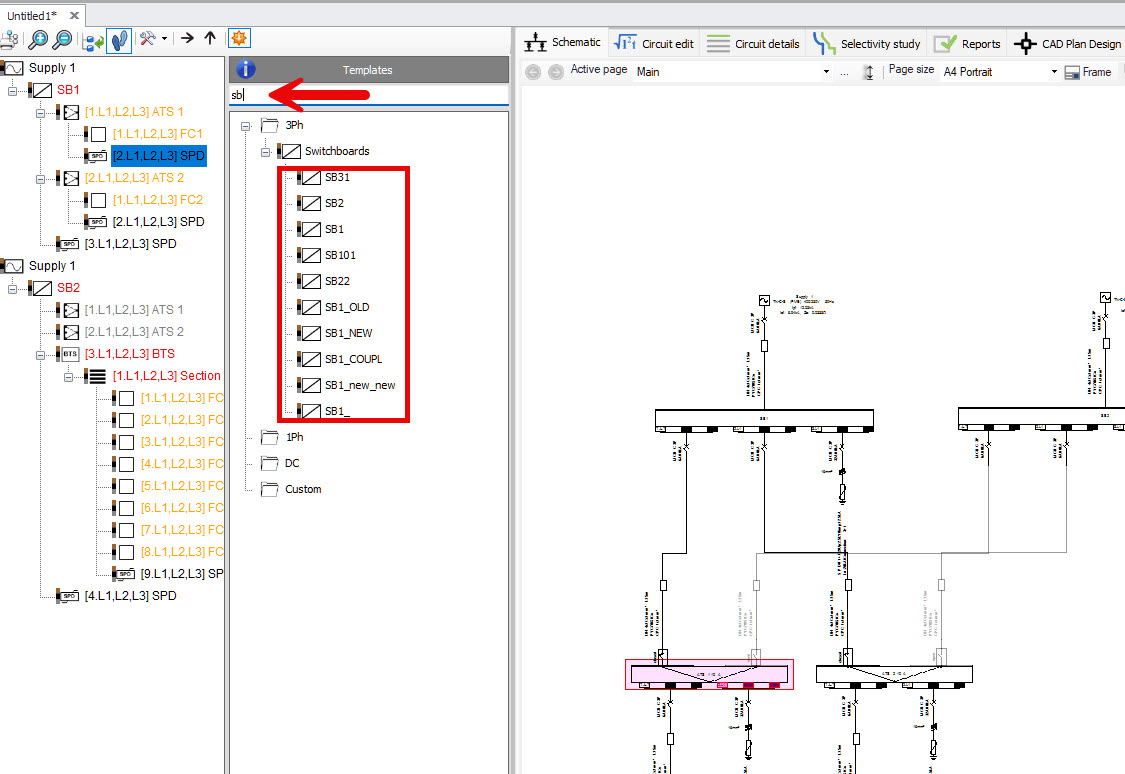

28.09: Ability to search the templates by description

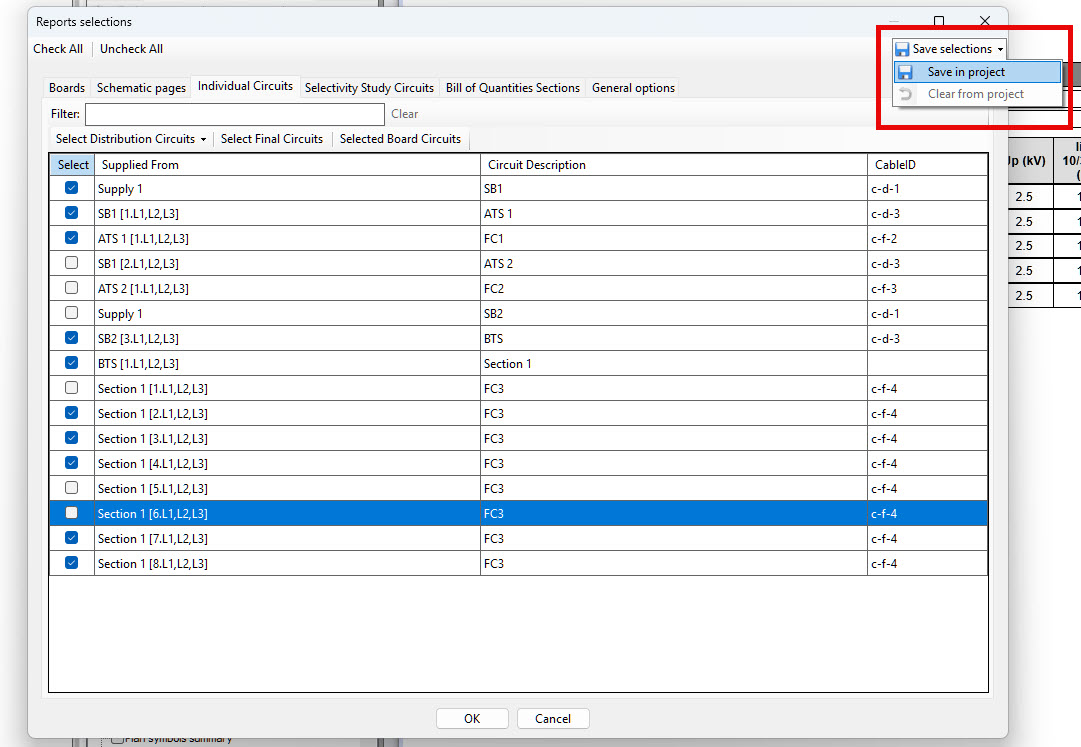

29.09: Ability to save the report selection in the project

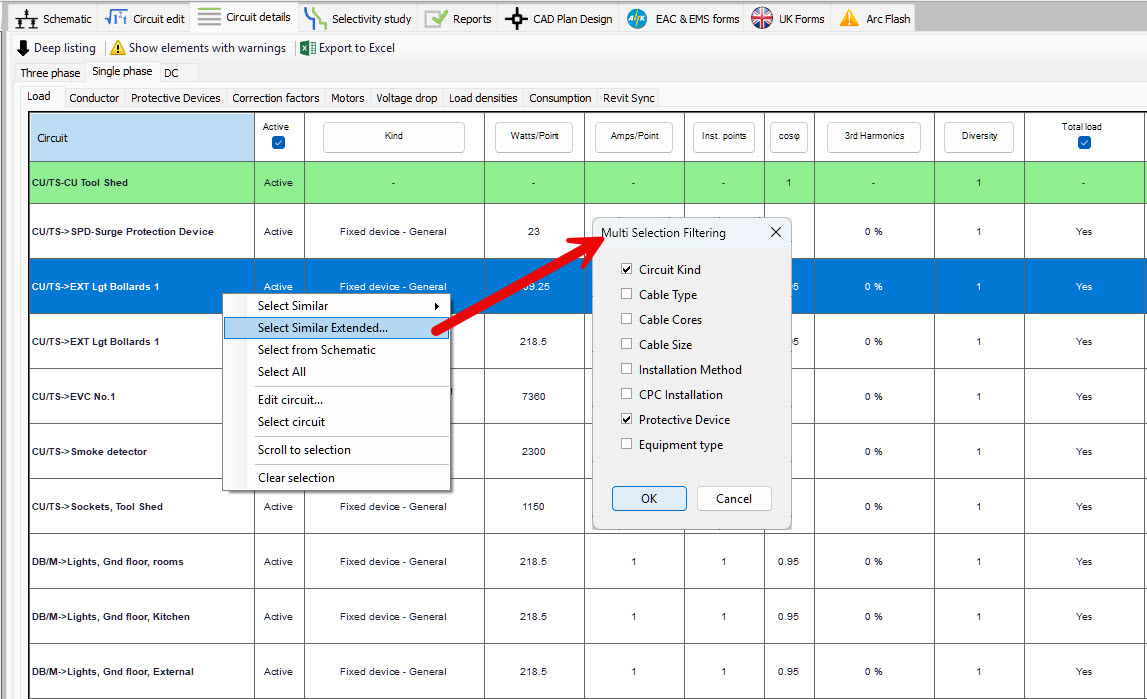

09.09: Circuit details: Select Similar Extended - select the circuits that match several criteria at once (circuit kind, cable type, cores and size, installation method, CPC installation, protective device, equipment type)

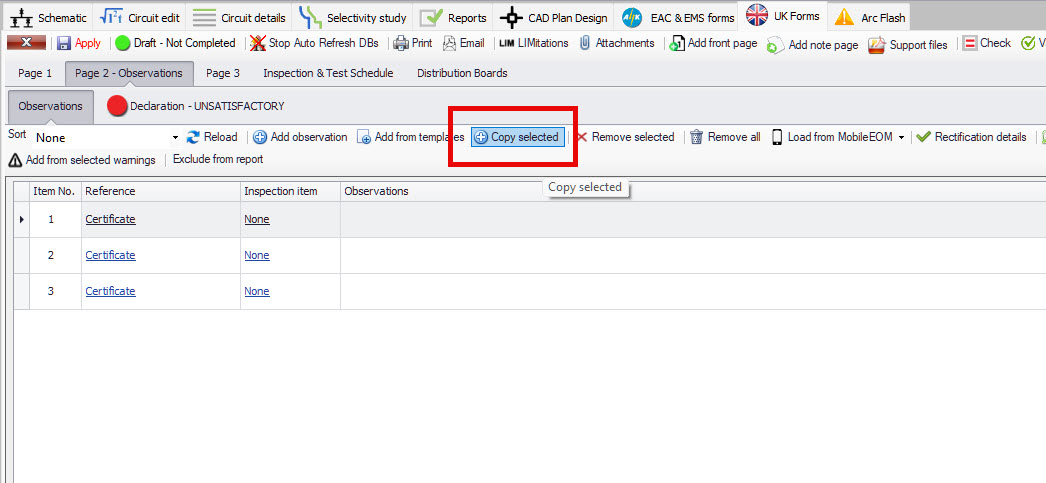

29.09: UK Forms: Ability to copy observations

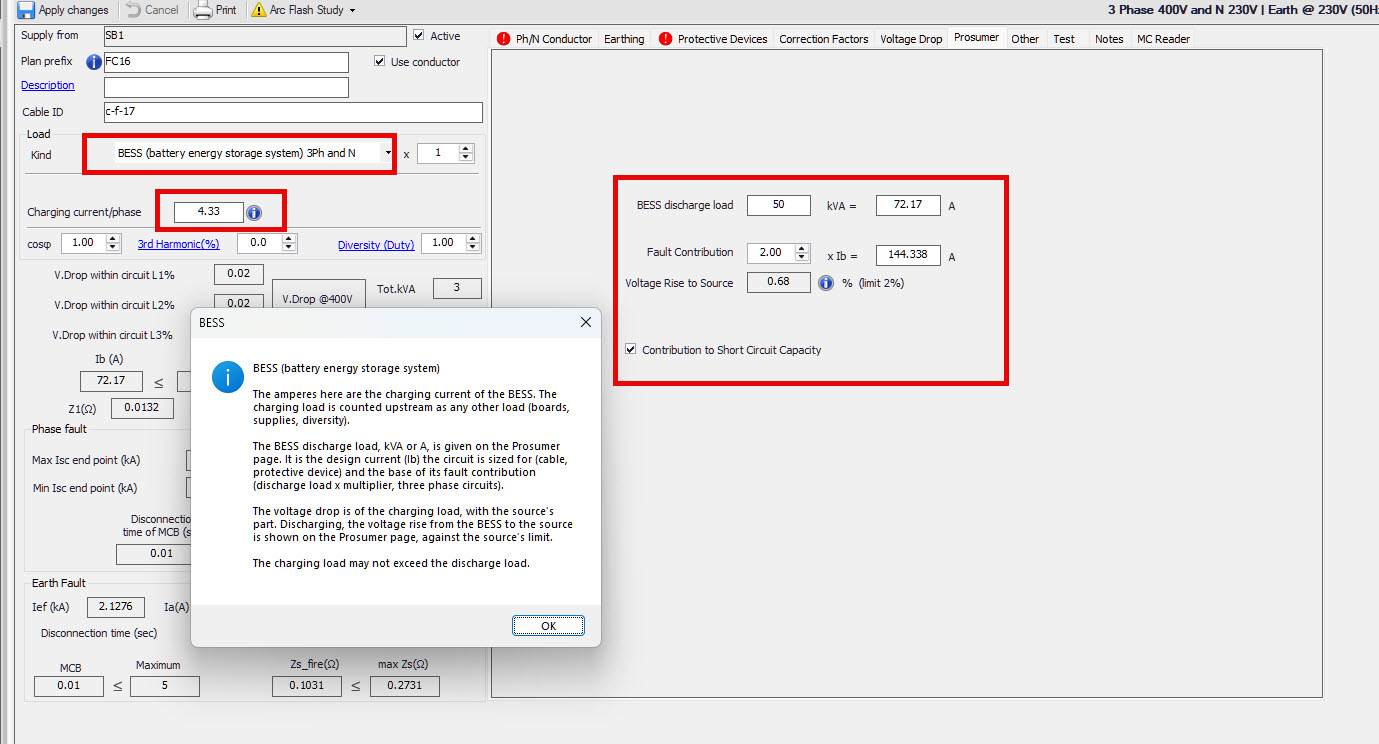

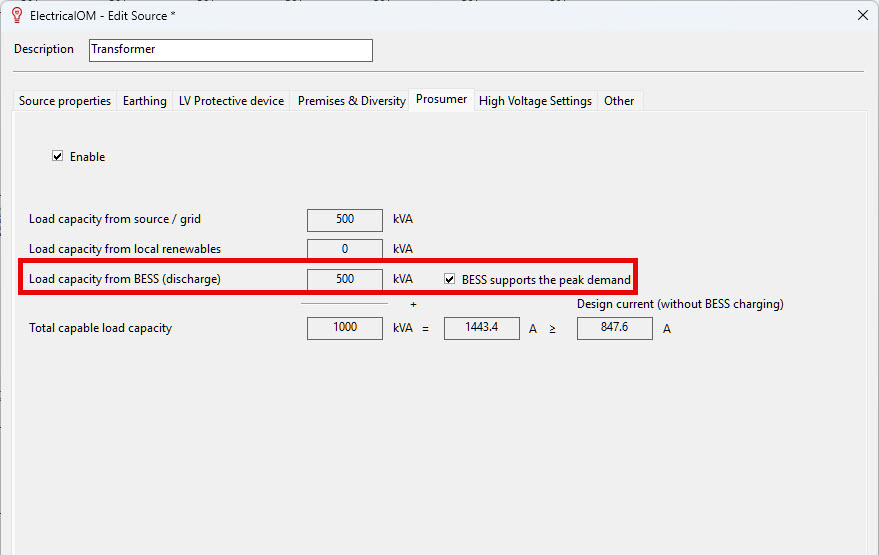

01.10: BESS load kind - a BESS charges as a load (charging current) and discharges as a source

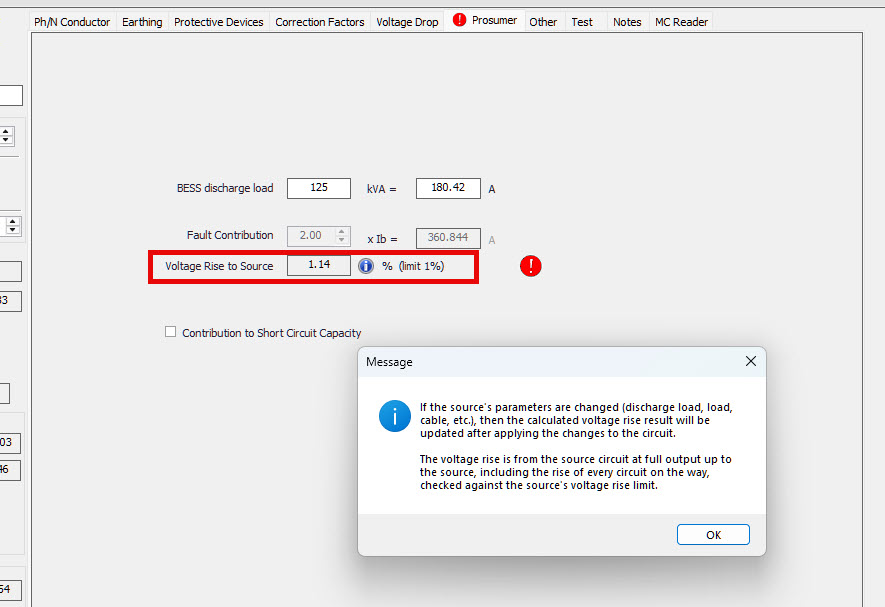

01.10: Voltage rise check for renewable sources and BESS

01.10: Renewable sources and BESS fault contribution option

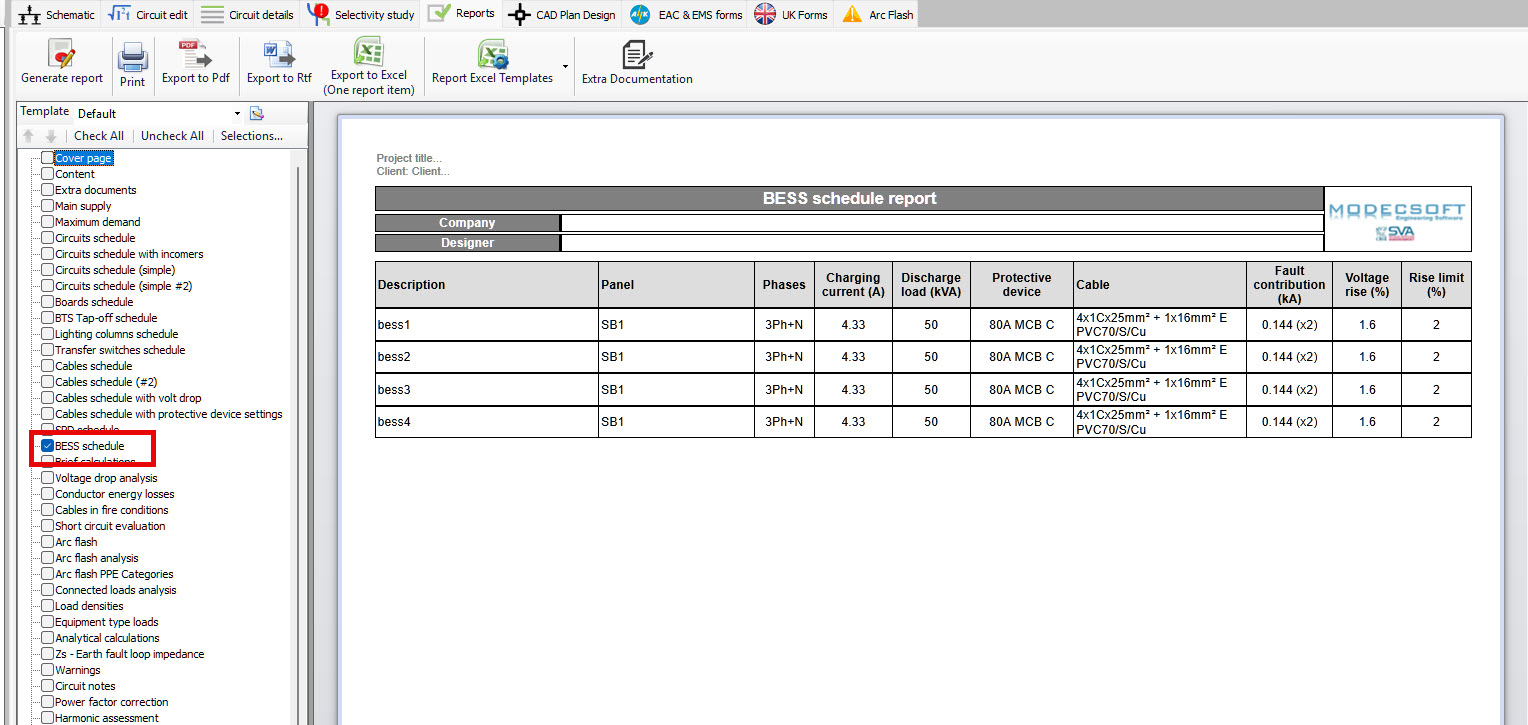

01.10: BESS schedule report

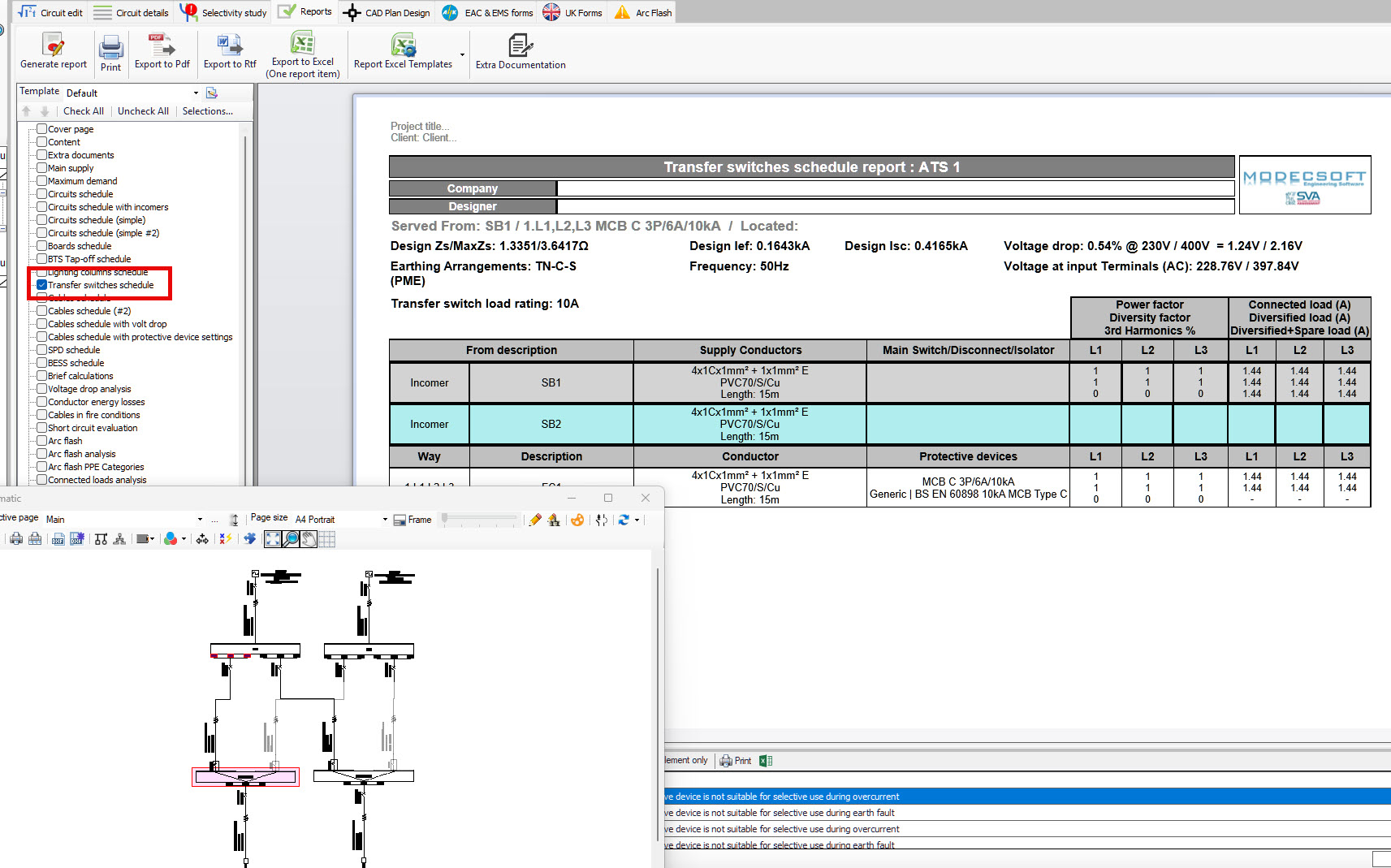

09.09: Transfer switches (ATS) schedule report

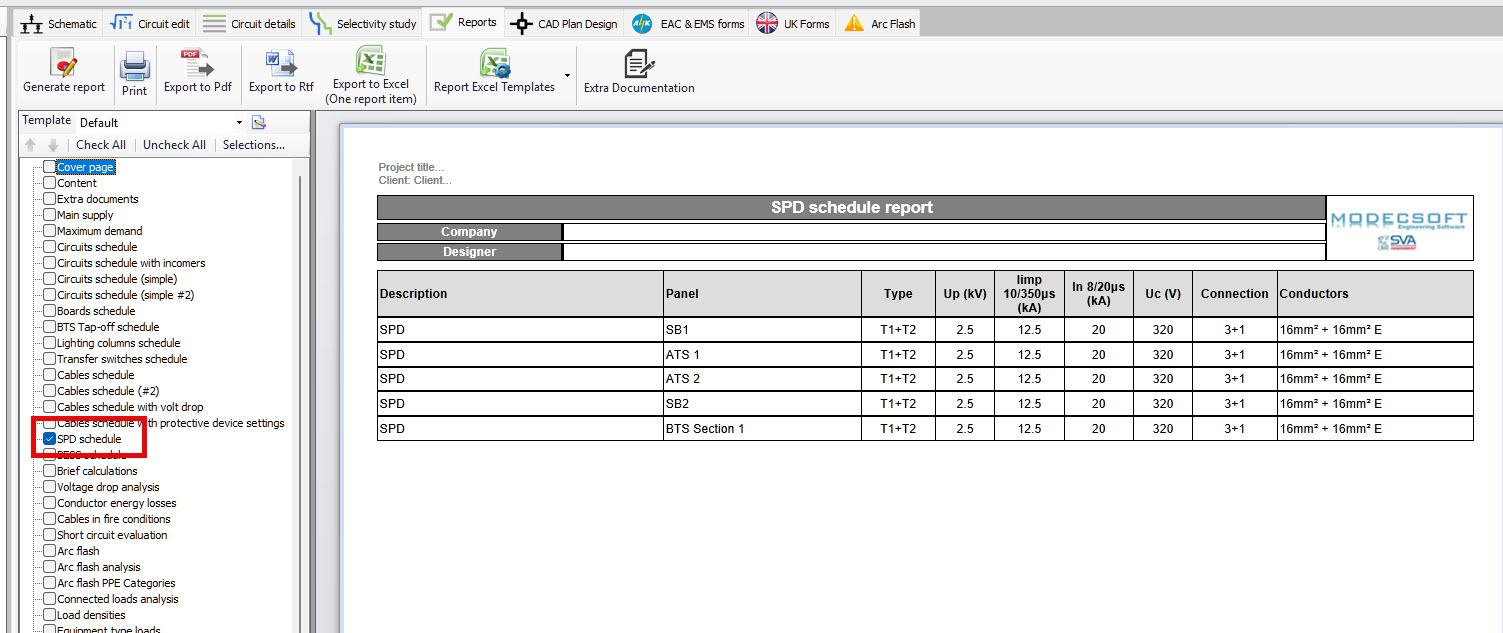

28.09: SPD schedule report listing every SPD in the project with its board and settings

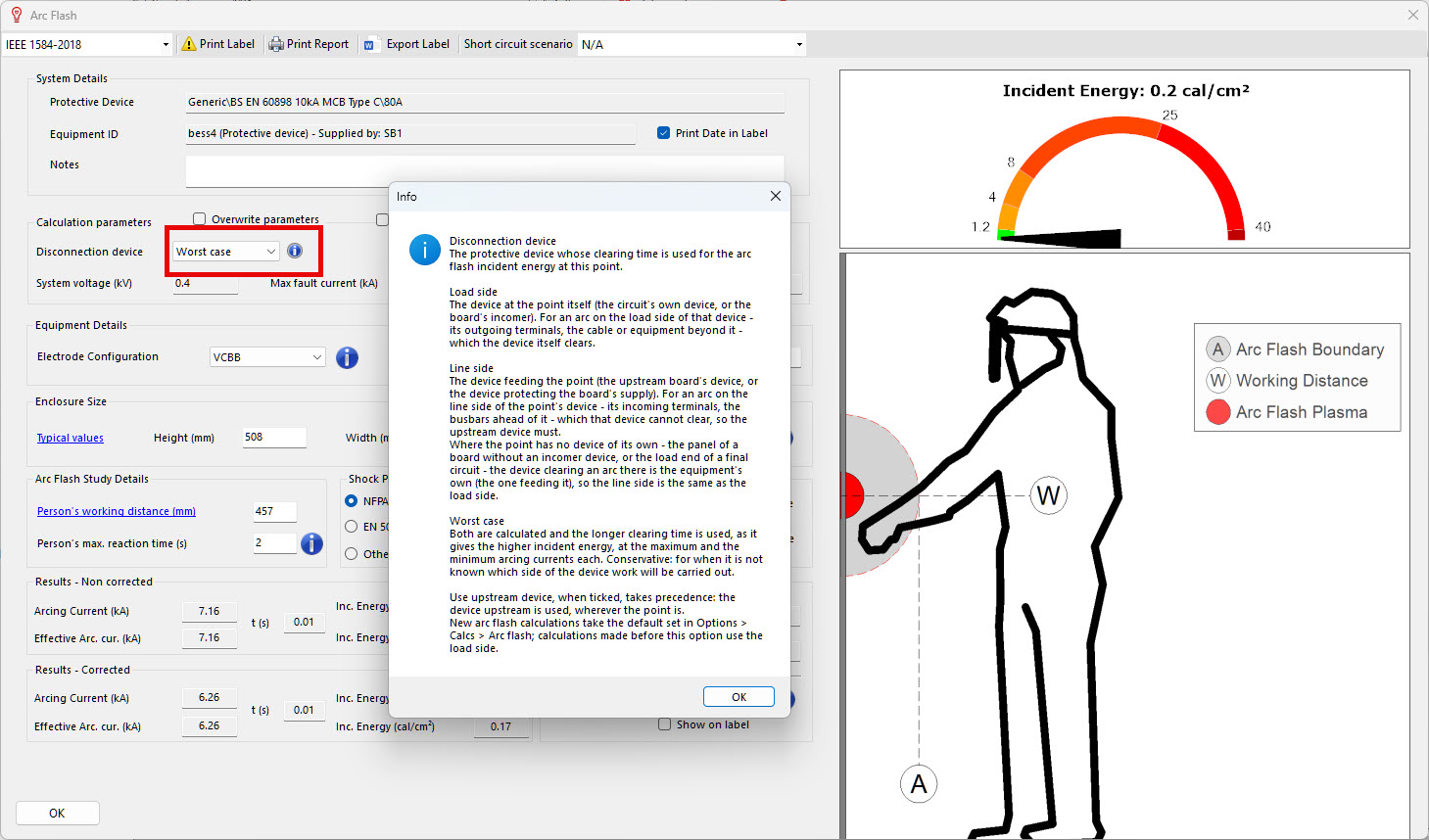

01.10: Arc flash effective disconnection device option (Load side, Line side, Worst case)

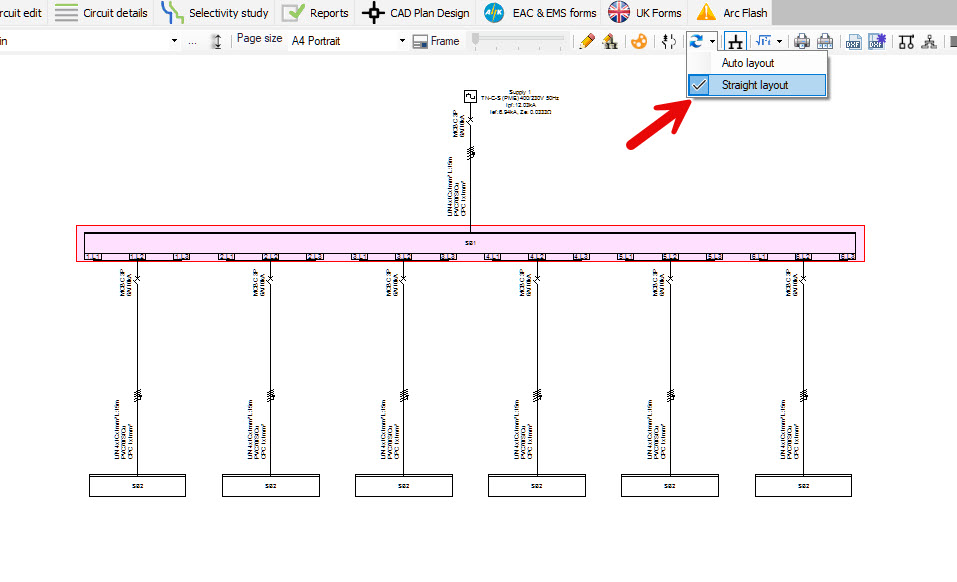

01.10: New straight layout mode per board

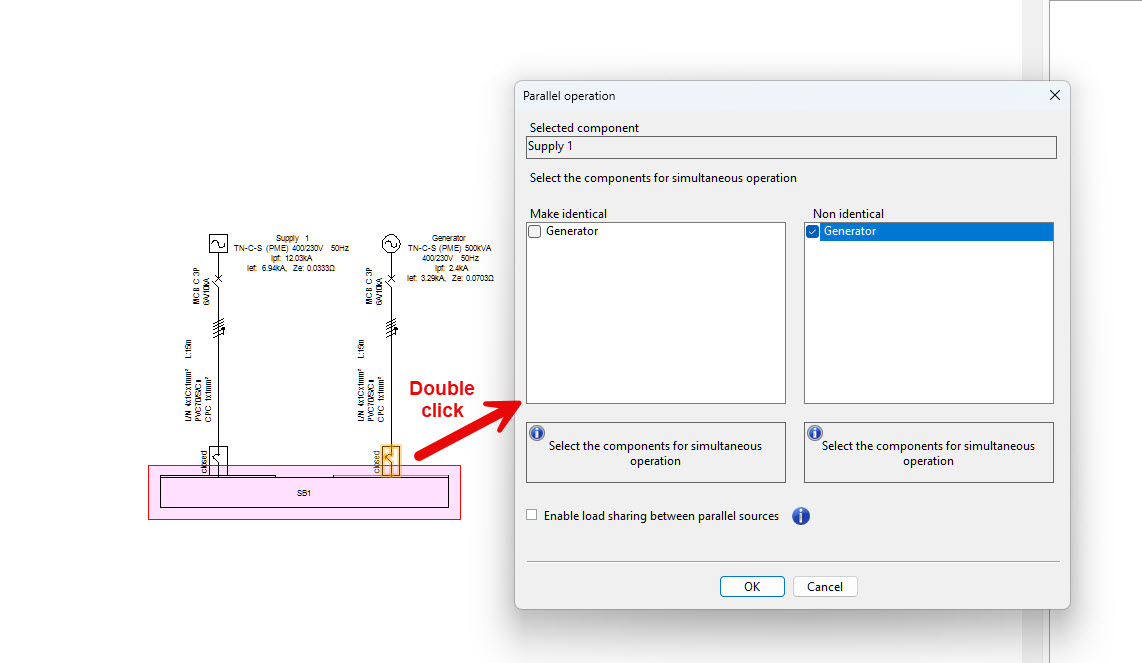

02.10: Parallel connections can be selected from the closed switch

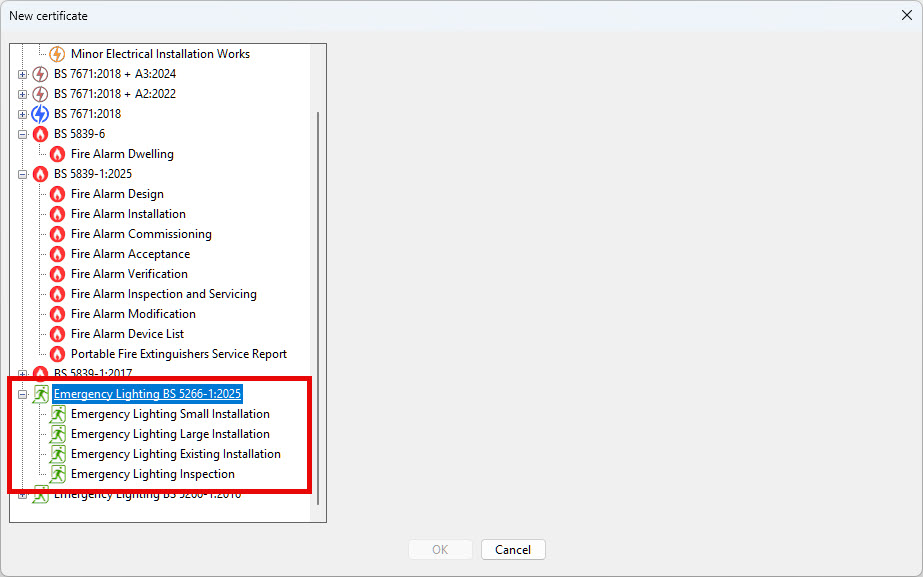

02.10: UK Forms: Emergency Lighting certificates to BS 5266-1:2025

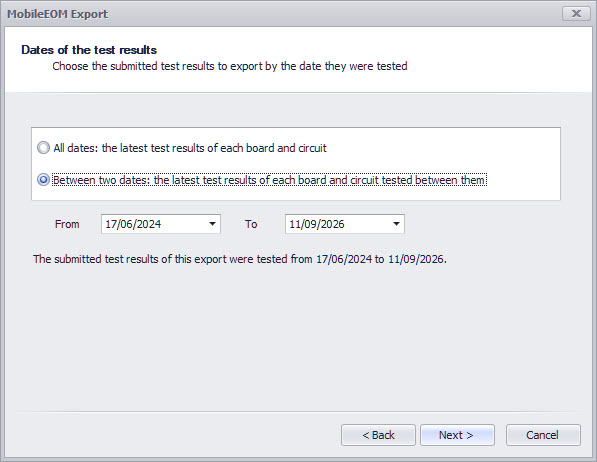

06.10: MobileEOM export wizard - test results can be exported for all dates or between two dates

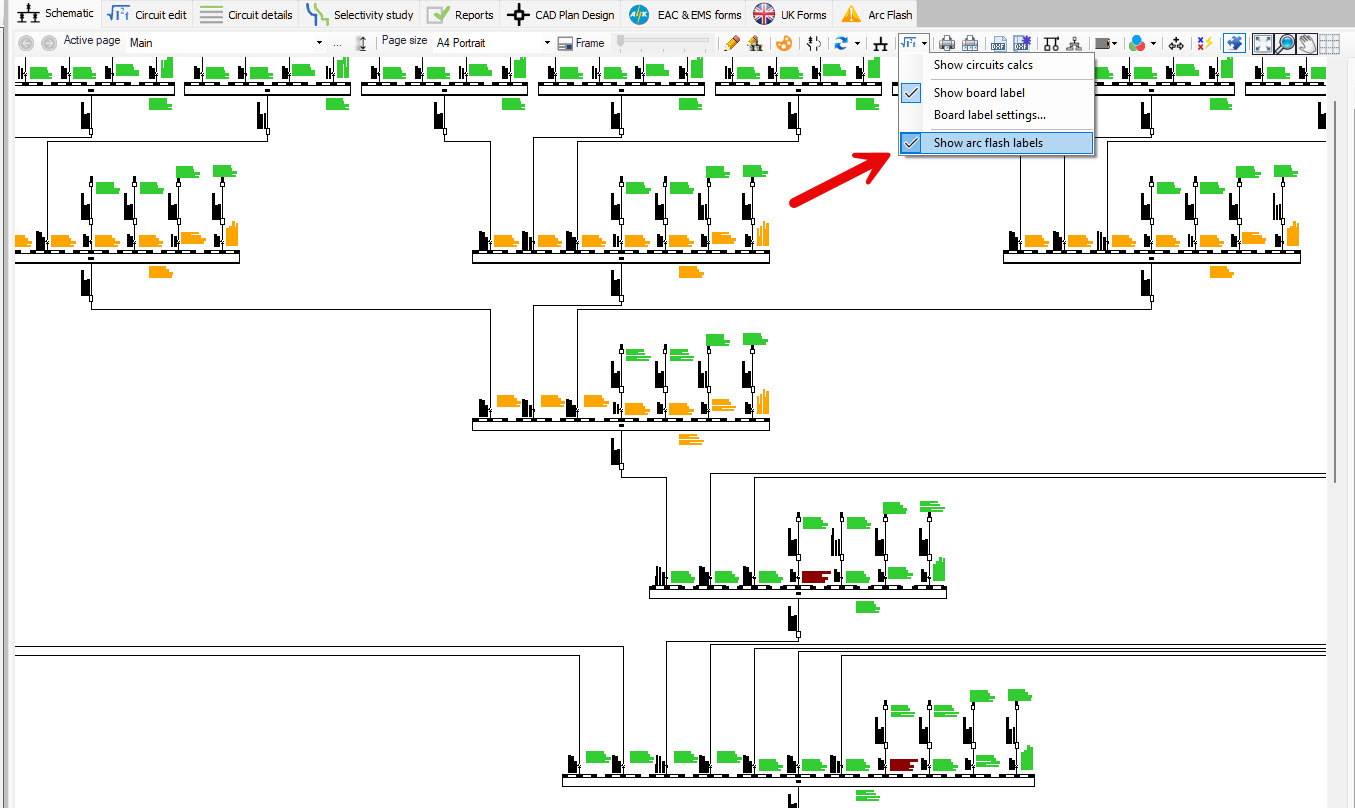

06.10: Arc flash labels - new option to show / hide all the arc flash labels in the schematic at once, over each label's own show setting

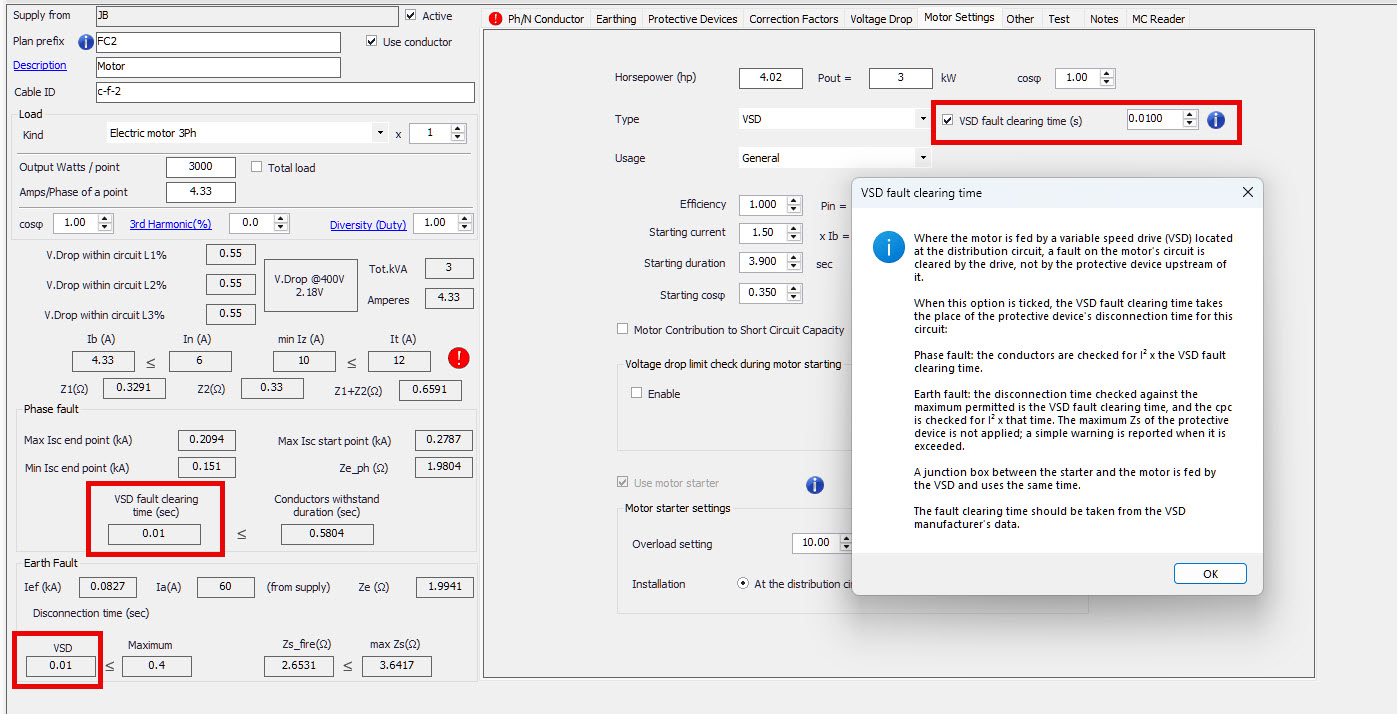

06.10: VSD fault clearing time - for a motor with a VSD starter at the distribution circuit, the VSD fault clearing time replaces the device disconnection time in the phase fault and earth fault checks, also for a junction box between the starter and the motor

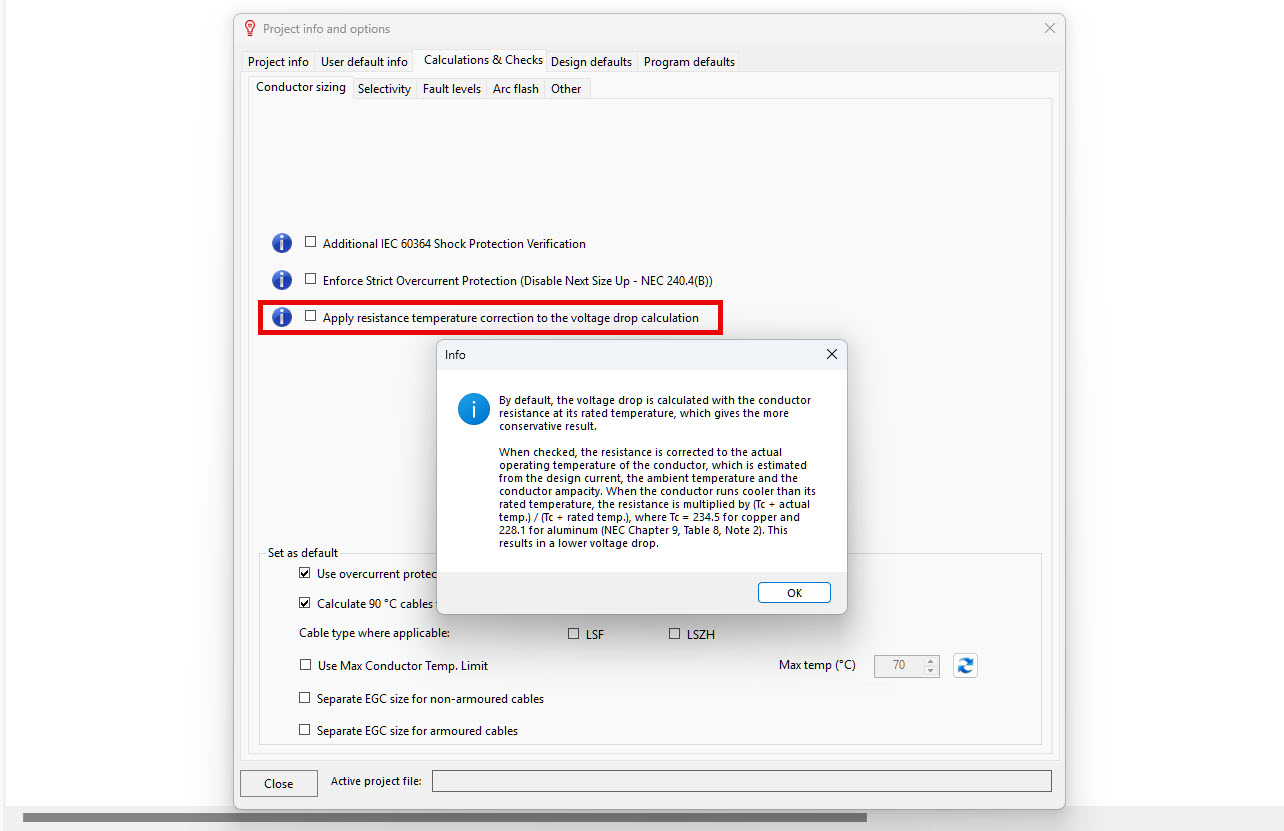

06.10: NEC-USA voltage drop is calculated with the conductor resistance at its rated temperature by default (conservative). New option to apply the resistance temperature correction for the actual operating temperature (NEC Chapter 9, Table 8, Note 2)

Improvements & Bug fixes

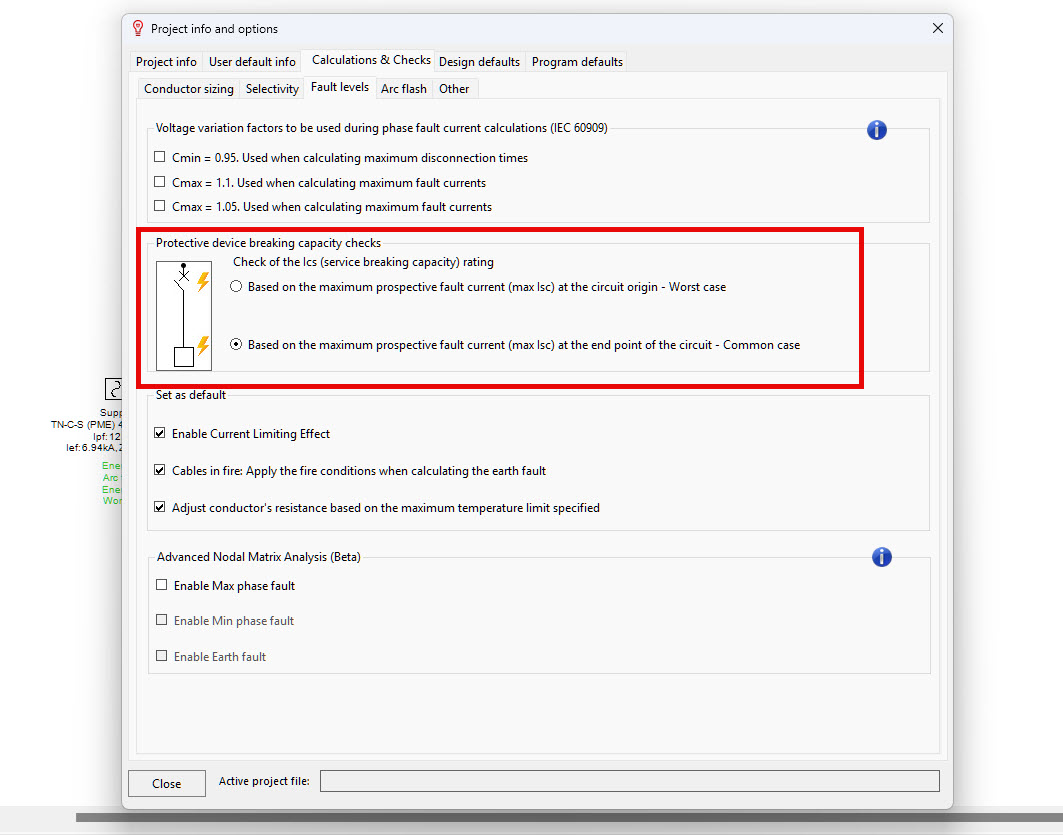

24.07: Option for the Ics check basis (fault at the circuit origin or at the circuit end)

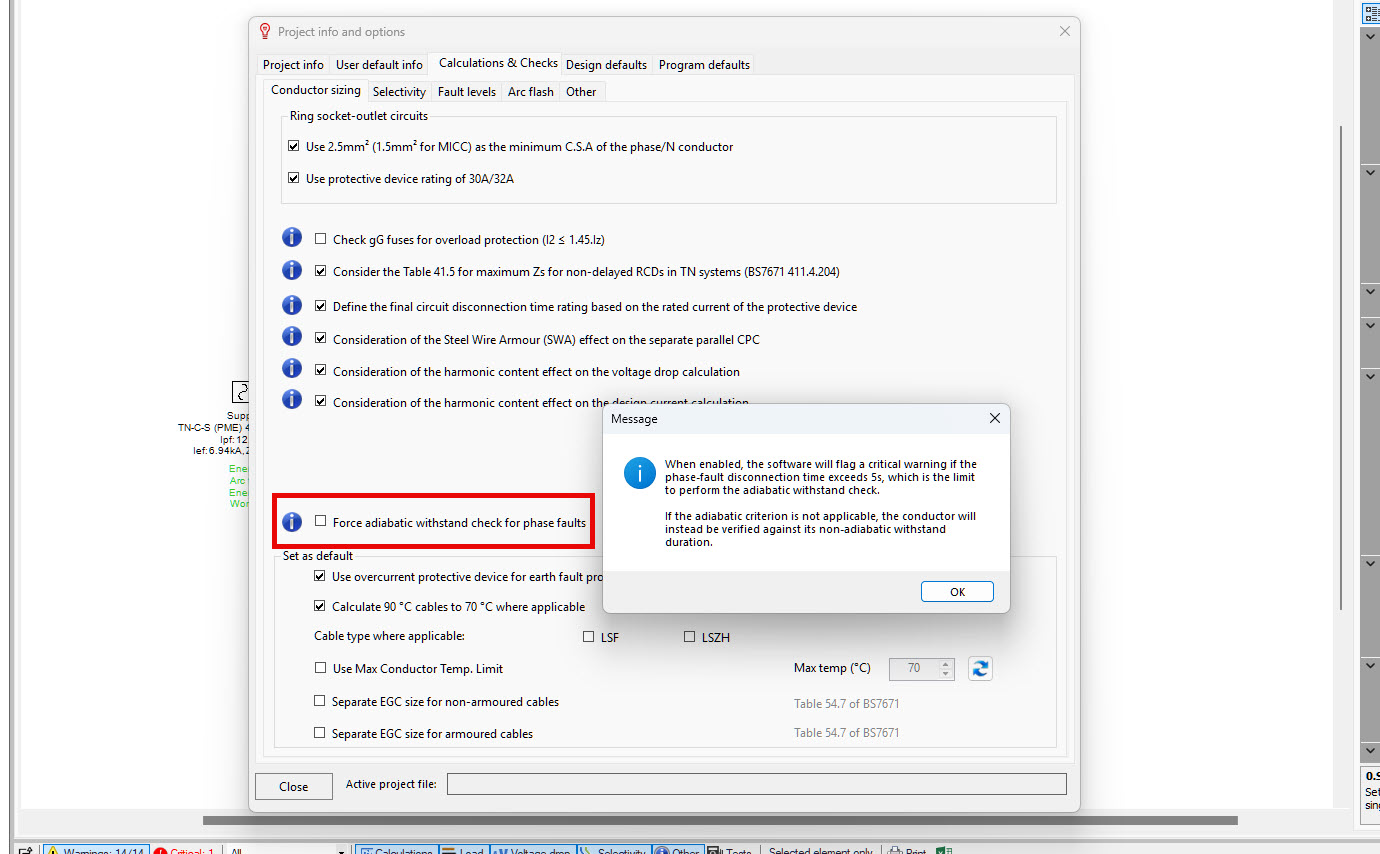

10.09: Option to force the adiabatic check for phase faults (max disconnection time 5 sec)

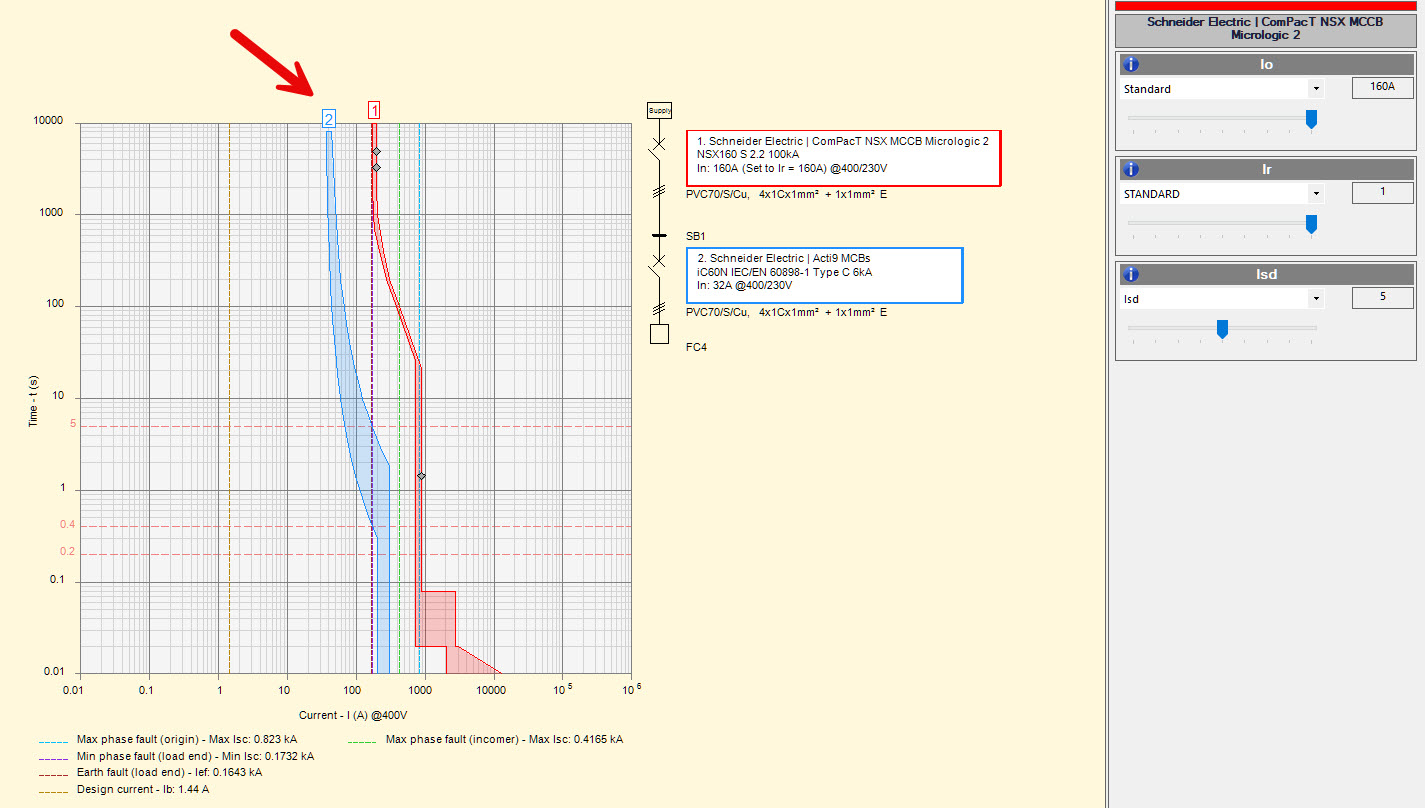

29.09: Improved selectivity study area - legend in columns, curve numbers on the curves and on the printout

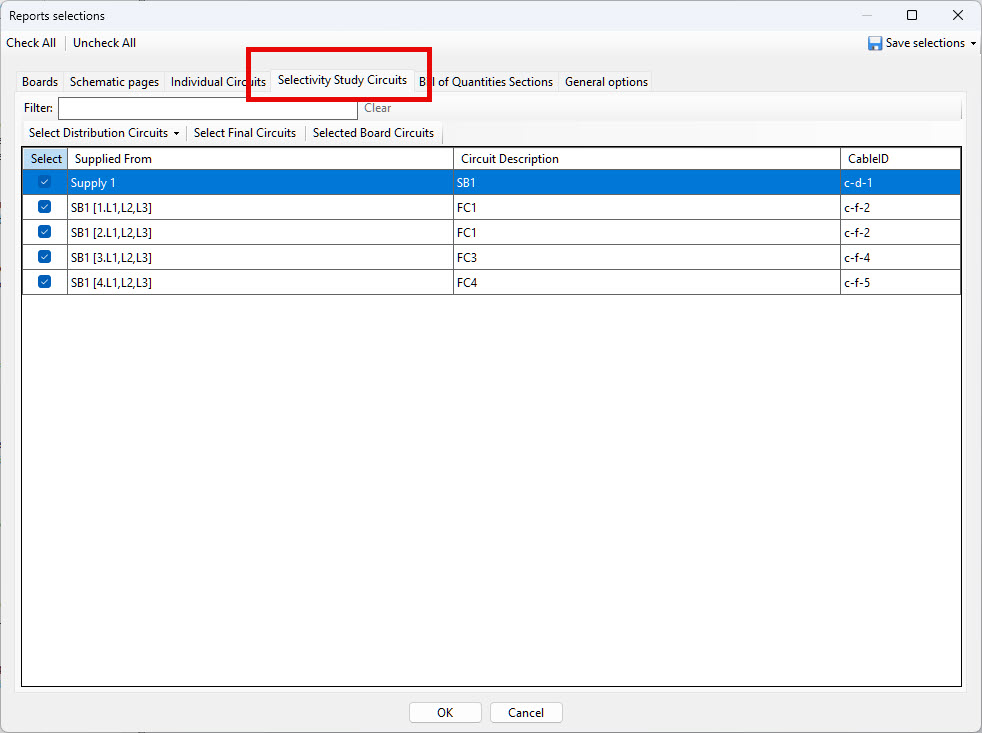

29.09: Ability to select the circuits for the selectivity study in the report selections

30.09: Report selections: filter each list

28.09: Revit: Wiring through containment improved

29.09: Improvements in Revit sync - switchboard couplings, pages and figures are preserved

24.07: New Revit parameters: Assembly rating InA, Peak fault rating (kA), Fault rating (RMS) kA@1s

24.09: Copy / paste and templates keep coupled switchboard arrangements (couplers, pages and conductors)

01.10: The File menu lists up to 10 recent projects

02.10: Material costs: miscellaneous / spares quantities are kept per project

09.09: NEC 310.10(H)(1) check for parallel conductors smaller than 1/0 AWG

09.09: Socket-outlet RCDs to BS 7288 are considered for additional protection only (Reg. 531.3.4.1)

16.09: Improved Junction box in-between and DB / switchboard conversion functions

Devices

24.07: Siemens 3VA MCCBs ETU - tr setting fix

09.09: Siemens 5SV60 and 5SV63 AFDD devices

24.07: ABB Tmax XT TMG MCCBs

24.07: ABB Tmax XT2 Ekip - I2t setting fix

12.08: ABB EMAX 3 ACBs

09.09: ABB EMAX + PR122 DC

09.09: Eaton Bussmann 170M square body fuses

09.09: Eaton Bussmann MJ30-7 gG fuses

09.09: Eaton Bussmann BS88 fuses: AAO BS88 EN60269 gG

09.09: Eaton Bussmann BS88 fuses: AAO BS88 EN60269 gM

09.09: Eaton Bussmann BS88 fuses: BAO BS88 EN60269 gG

09.09: Eaton Bussmann BS88 fuses: BAO BS88 EN60269 gM

09.09: Eaton Bussmann BS88 fuses: NITD BS88 EN60269 gG

09.09: Eaton Bussmann BS88 fuses: NITD BS88 EN60269 aM

09.09: Eaton Bussmann BS88 fuses: DD Industrial HRC BS88 EN60269 gG

09.09: Eaton Bussmann BS88 fuses: DD Industrial HRC BS88 EN60269 gM

09.09: Ferraz Shawmut Protistor aR Size 31

09.09: FuseBox 3P MCBs, 3P+N RCBOs

09.09: Schneider (UL) PowerPacT M/P/R-Frame ET1.0

09.09: Schneider (UL) PowerPacT H/J-Frame I-Line

09.09: Schneider Easergy P5 relay

28.09: Contactum 3P+N Bi-directional RCBOs 10kA (Types B, C, D)

Cables

24.07: Doncaster/PV-Ultra 2C SWA, 4C, 4C SWA

24.07: EN/VFD 3+3PE PVC EN 60228 Class 5 Screened

24.07: Cleveland/TESLA NA2XY PVC 4 Core and Reduced Earth

09.09: EN/YMvK Single-core and Multicore Dca

02.10: Vodafone/1 Pair Power Trunk Cable
