Selectivity Study Module Tab

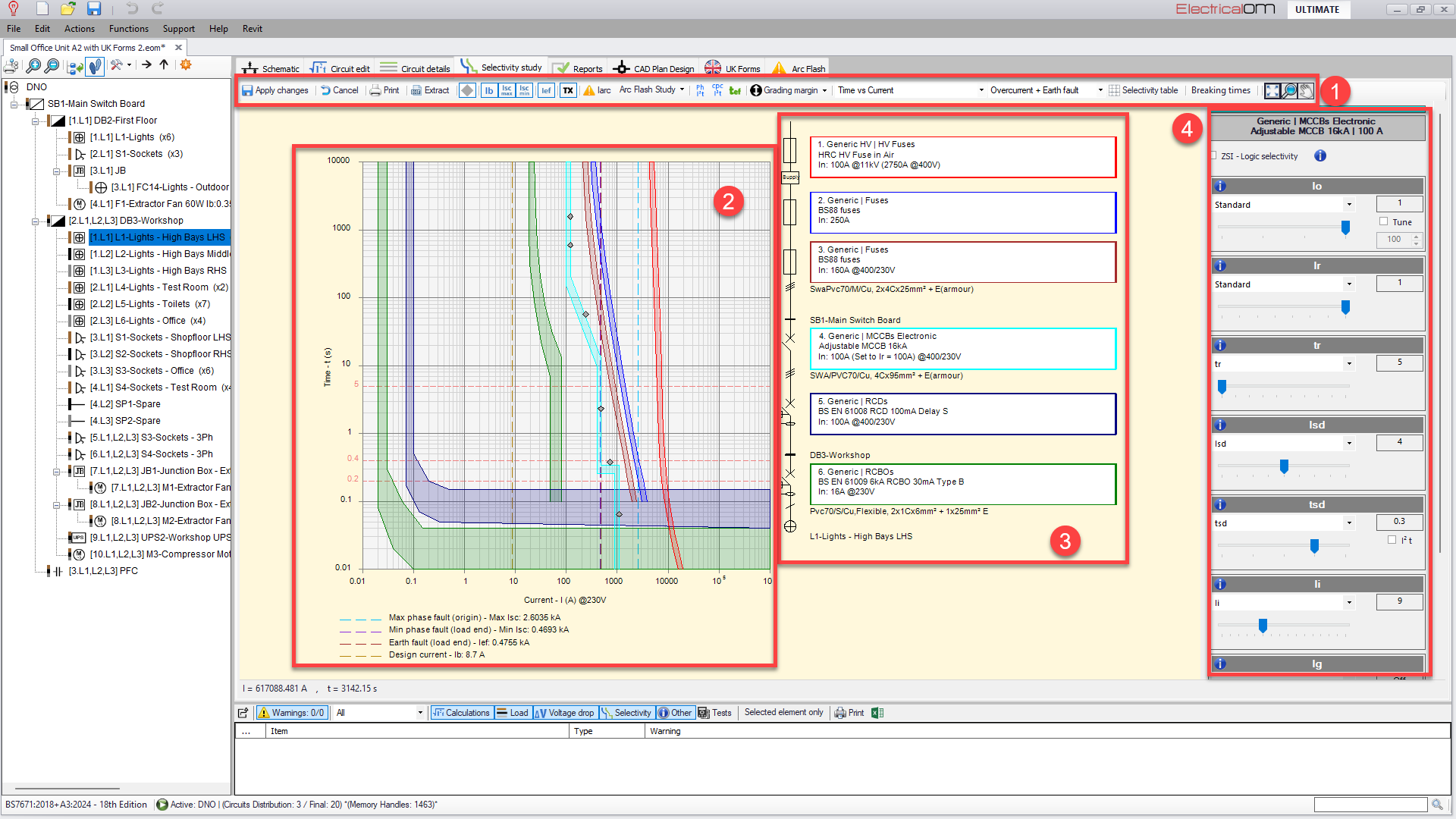

Selectivity Study Module is used to visualise the related curves and modify the settings of or the protective device itself directly. The module screen consists of:
- a toolbar at the top, see Toolbar.
- the graphs area, see Graphs and Single Line Diagram Areas.
- single line diagram area, see Graphs and Single Line Diagram Areas.
- the side panel on the right, see Side Panel.
