Inverters with Independent MPPT DC Inputs and Internally-Connected DC Inputs
By default, ElectricalOM treats each inverter DC input as being connected to an independent MPPT (Figure 12). However, when modelling inverters with multiple DC inputs internally paralleled onto a common DC bus, or when multiple PV strings are connected via a combiner box, users can represent this configuration using the Junction Box component, as illustrated in Figures 13–14.

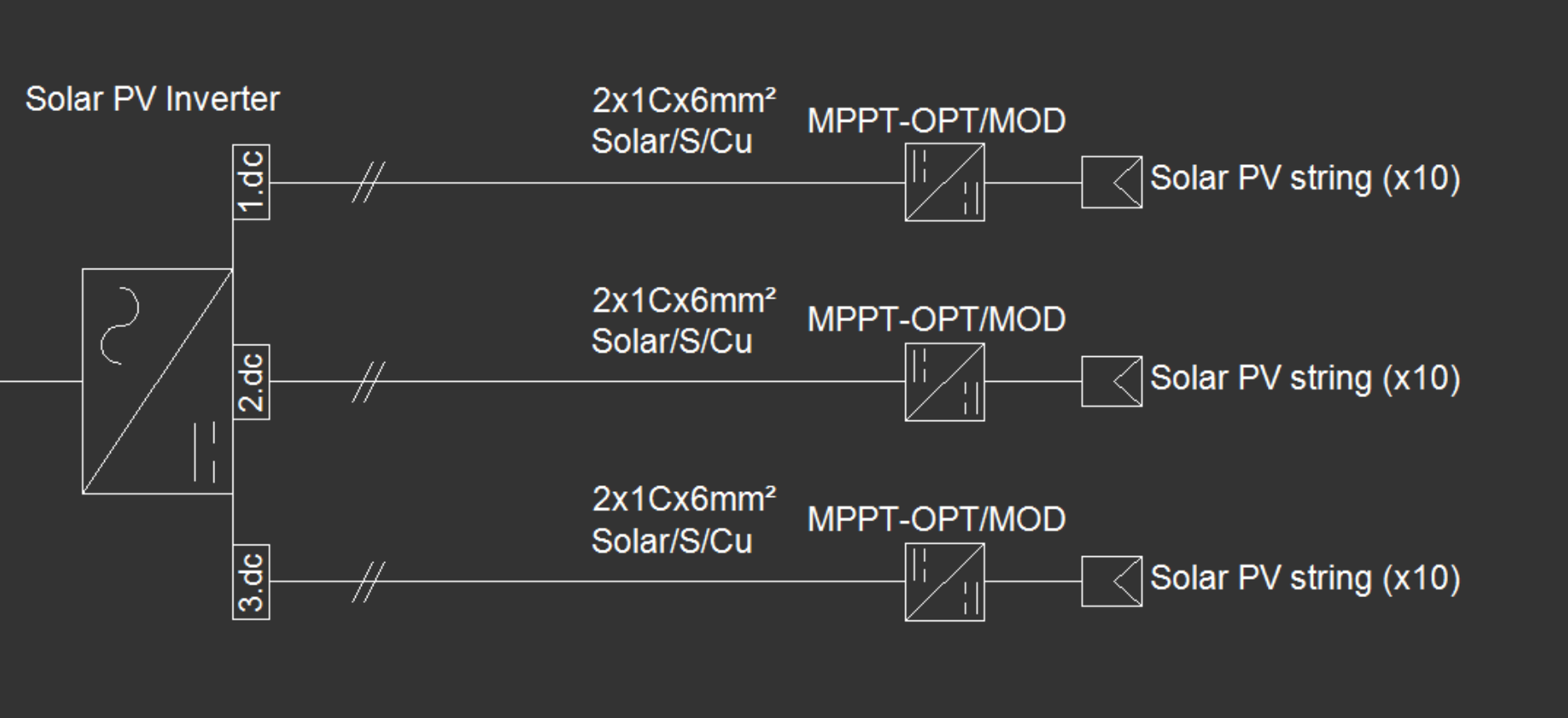

Figure 62 SLD of an Inverter with Independent MPPT DC Inputs

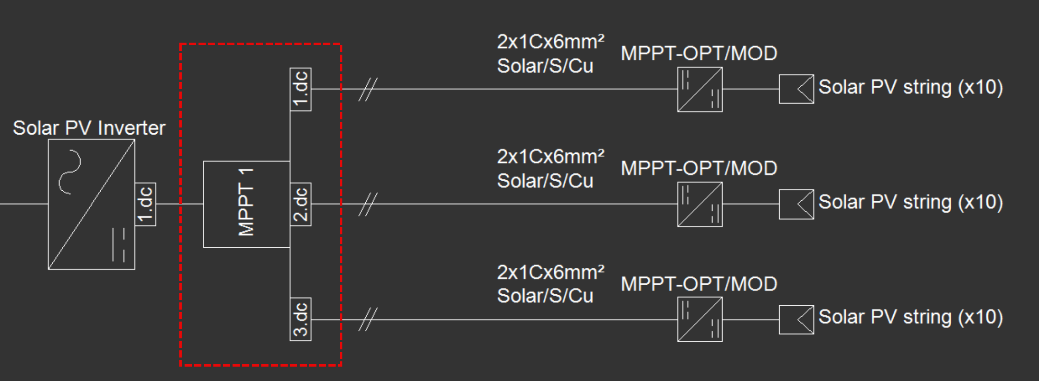

Figure 13 SLD of an Inverter with Internally-Connected DC Inputs

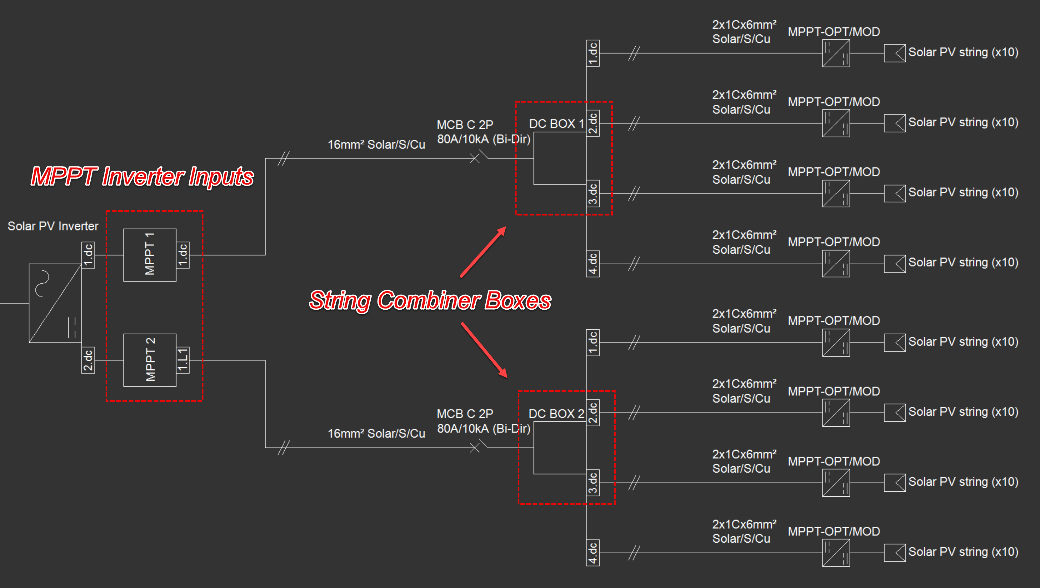

Figure 14 SLD of PV Arrays, PV String Combiner Boxes, and MPPT Inverter Inputs
