System tree area also supports drag and drop functionality. Once a circuit is selected, holding left mouse button and moving the selected circuit will initiate this functionality. There are various options which are discussed below.

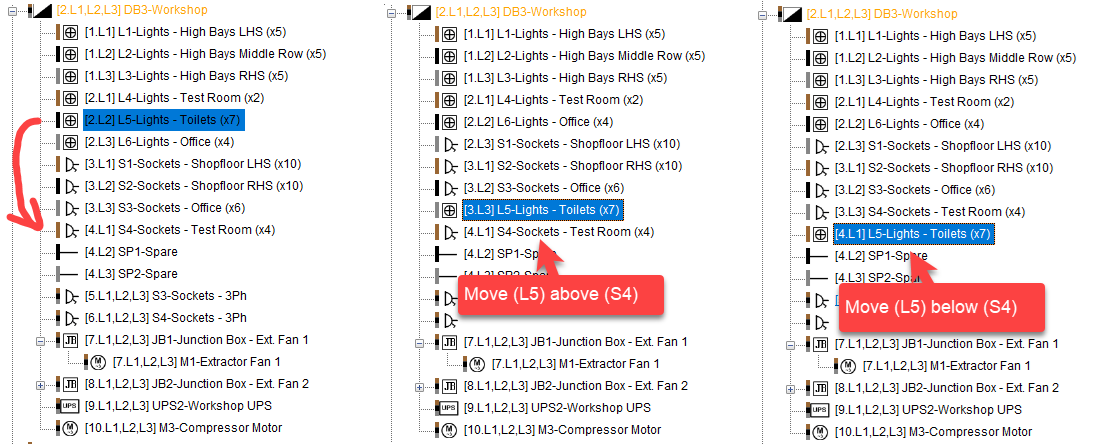

Move above/below

This will move the selected circuit to above or below of the circuit where the left mouse button is released.

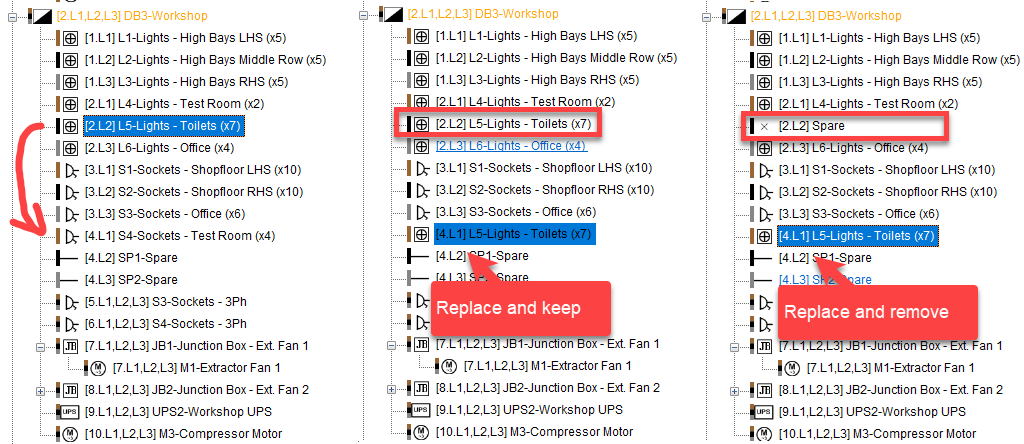

Replace and keep/remove

This option will replace the target with the dragged circuit. If keep option is used, then, ElectricalOM will not delete the original circuit, if remove option is used, then, ElectricalOM will delete the original circuit and set it as a spare.


Swap

This option will swap the target circuit with the selected circuit.
