Throughout the Solar PV Inverter settings and calculation sections, info icon buttons (ℹ️) are provided next to critical parameters and computed values. These icons offer context-specific guidance to help users understand design inputs, regulatory checks, and industry best practices.

Clicking on an info icon reveals a pop-up explanation tailored to the specific field. This feature enhances usability, ensures informed decision-making, and facilitates alignment with established standards.


Info Icons (ℹ️)

DC/AC Ratio (Point 2)                                                                Ib (A) (Point 5)

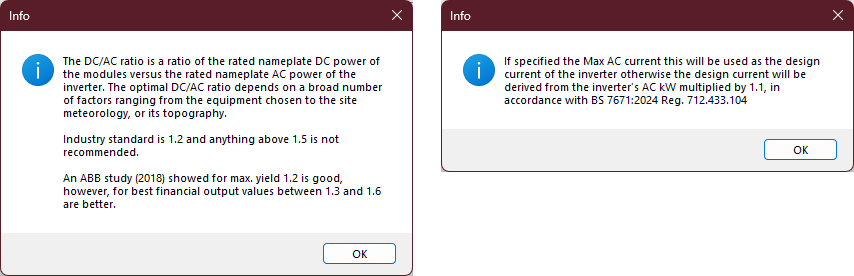

Figure 4 Circuit Edit Menu Info Icons – (A) DC/AC Ratio and (B) Ib (Design Current)


In addition to the main input parameters, users can access and configure additional inverter-specific options by clicking the “Settings...” button located beneath the Solar PV Inverter symbol. This section allows for the adjustment of advanced parameters related to the inverter's functional operational limits.


A screen shot of a computer??AI-generated content may be incorrect.

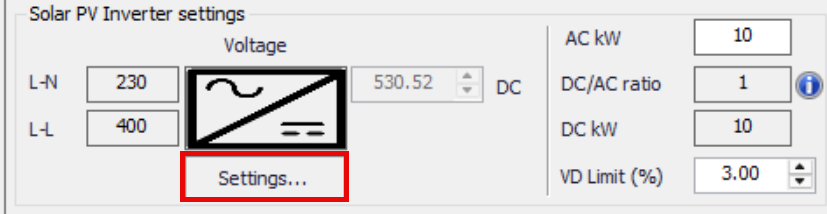

Figure 5 Solar PV Inverter Settings Button in the Circuit Edit Menu
