When power optimisers are enabled in the Solar PV Inverter settings (see Figure 8), users can access the corresponding configuration parameters by clicking the PV Optimisers button within the PV String Circuit Edit section. This enables adjustment of optimiser characteristics at the string level, including verification of the rated string current (see Figures 20 - 21).


A screenshot of a computer error??AI-generated content may be incorrect.

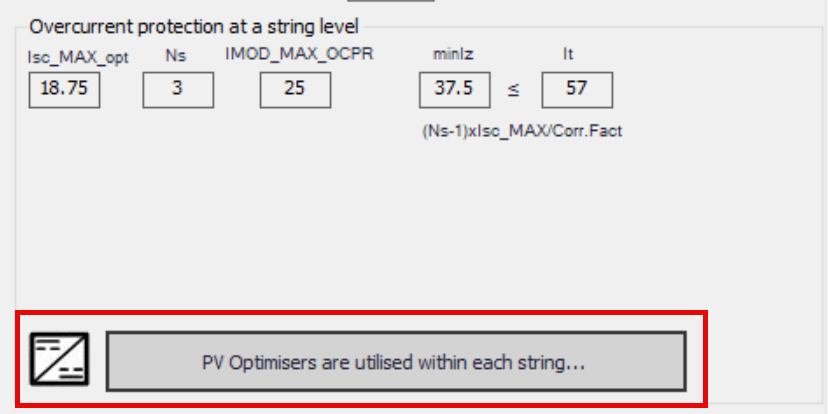

Figure 20 Power Optimiser Button in the PV String Circuit Edit Section


A screenshot of a computer??AI-generated content may be incorrect.

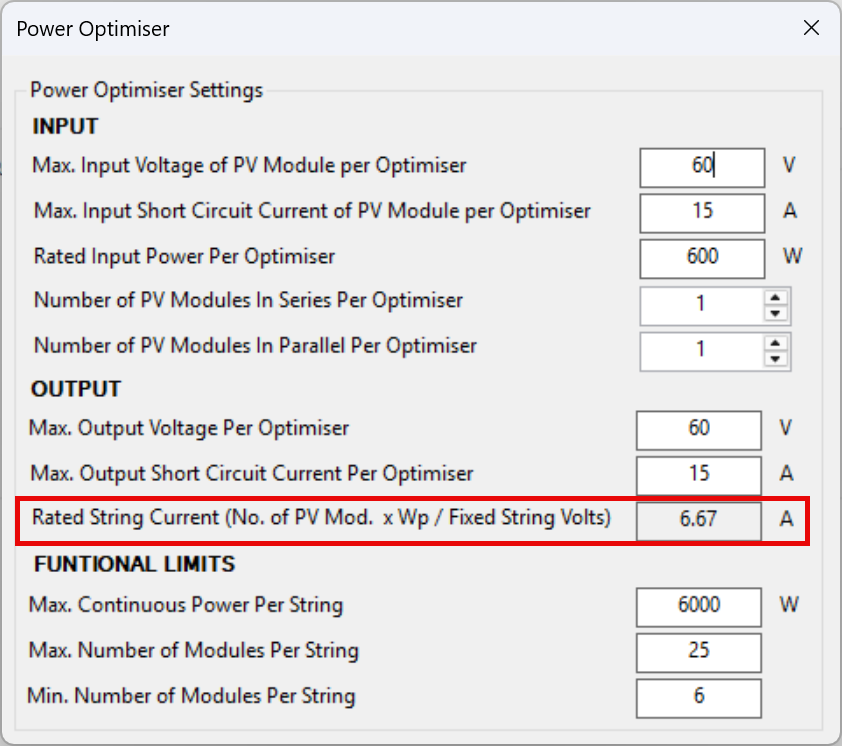

Figure 21 Power Optimiser Settings in the PV String Circuit Edit Section
