Revit
« on: March 19, 2021, 03:24:54 PM »
Hi,

Just got my demo license and I am willing to explore the Revit side of ElectricalOM.

Have someone model a Busbar system straight out of Revit into EOM?


Offline admin

  • Administrator
  • Newbie
  • *****
  • Posts: 10
  • Karma: +1/-0
Re: Revit
« Reply #1 on: March 24, 2021, 01:29:04 PM »
Hello,

To create a BTS structure in Revit and sync it with EOM you need to think similar to how the BTS is modeled within EOM.

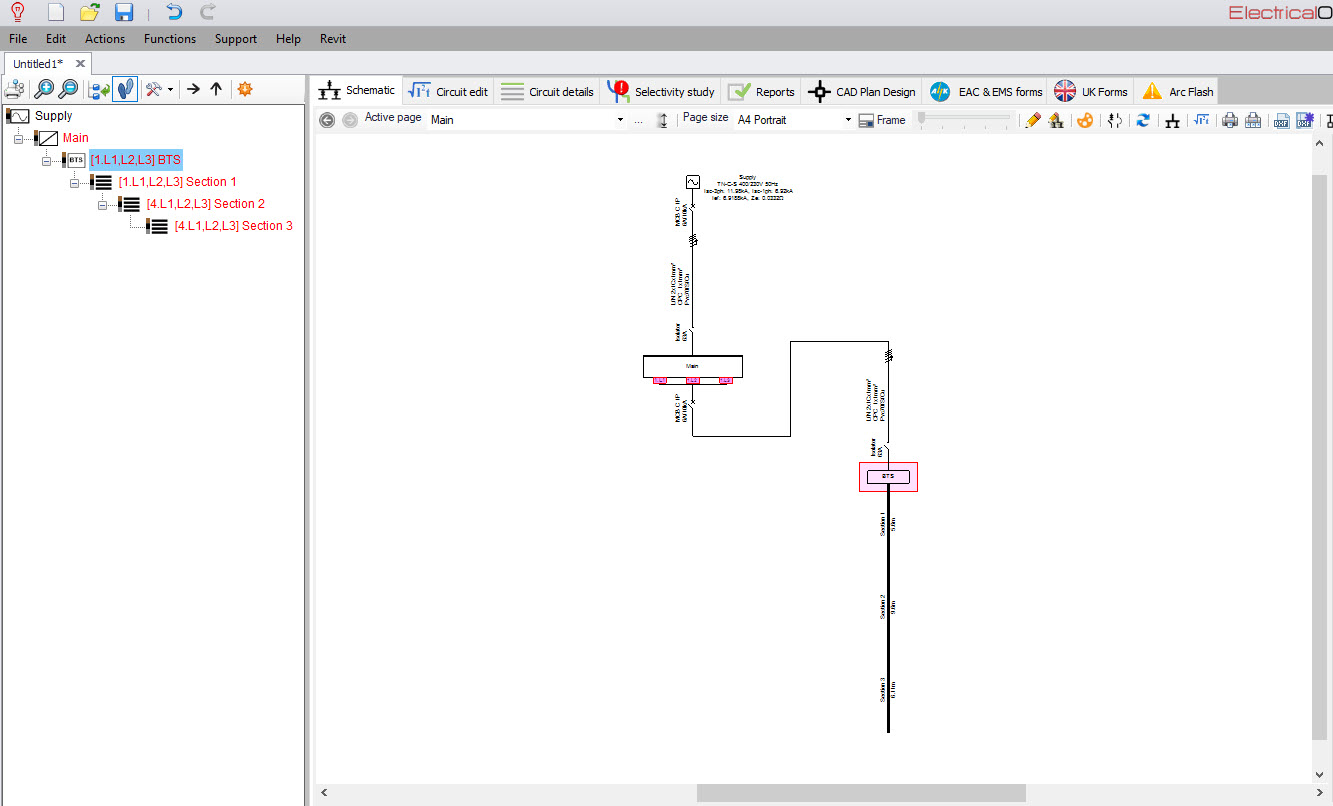

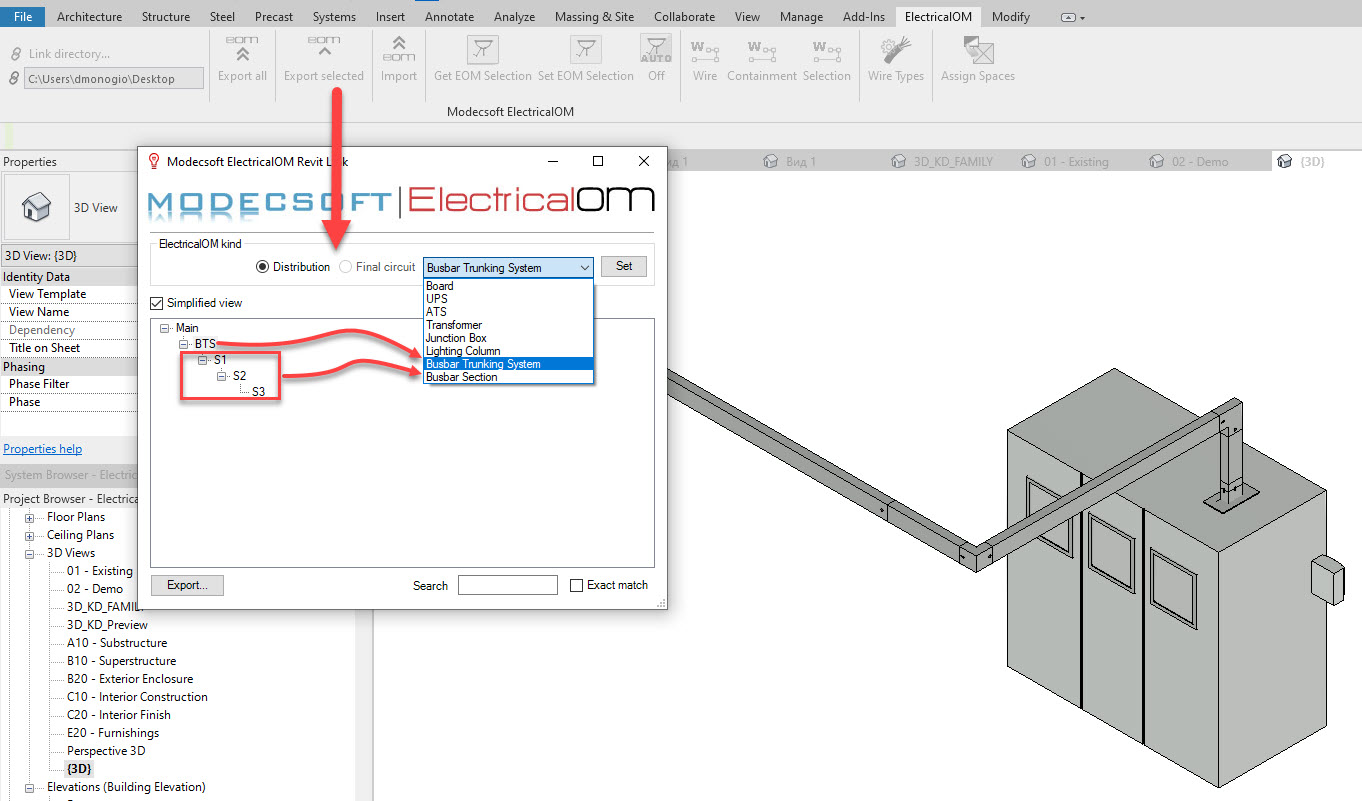

In EOM the BTS structure consists of the main BTS feeder component followed by busbar sections. So in Revit, you need to power your busbar feeder and sections the same way and also use the Export Selection option to define the EOM kinds before exporting as below:




Offline abeldeoliveira

  • Newbie
  • *
  • Posts: 2
  • Karma: +0/-0
Re: Revit
« Reply #2 on: April 30, 2021, 09:26:26 AM »
Thanks for your answer. I haven't got much time to go back to this again and almost forgot what the issue was. I will give it at go soon as I am back to the R&D for the rest of the day!!
